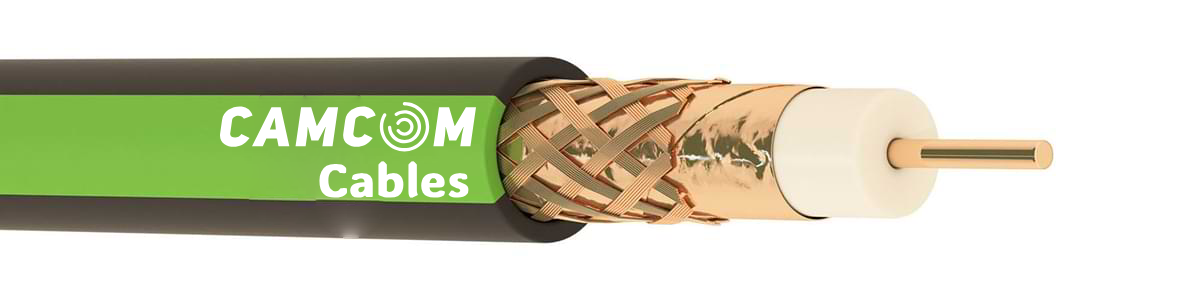

RG-59/U-6 Coaxial Cable
Product Code: RG-59/U-6
| 1 – Conductor | : | 0.80 mm ø electrolytic solid copper conductor |
| 2 – Insulation | : | 3.90 mm ø physical foam polyethylene |
| 3 – Screen | : | Cu/PET |
| 4 – 2nd Screen | : | Electrolytic copper braiding |
| 5 – Outer Jacket | : | UV resistant PVC, halogen-free, polyethylene outer jacket |
| Inner Conductor Resistance (20°C) |
Outer Conductor Resistance (20°C) |
Insulation Resistance |
Mutual Capacitance |
Propagation Velocity |
Operating Voltage |
Test Voltage |
Characteristic Impedance |
|---|---|---|---|---|---|---|---|
| <36.0 | <19.9 | >2000 | 53±2 | 0,84 | 1.1 | 2.5 | 75±3 |
| Smoke Density Test | Corrosive Gas Test | Halogen-free Test | Flame Retardancy Test |
|---|---|---|---|
| IEC 61034-2 VDE 0482-1034-2 EN 61034-2 |
IEC 60754-2 VDE 0482-267-2-3 EN 50267-2-3 |
IEC 60754-1 VDE 0482-267-2-1 EN 50267-2-1 |
IEC 60332-1-2 VDE 0482-332-1-2 EN 60332-1-2 |
| Part Number | Conductor Count | Conductor Diameter (mm) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.705.2.5.2.0080.0.5960 | 1 | 0.8 | 6.1 | 13.2 | 42 | 100/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 15xD mm | -40°C~+70°C |
