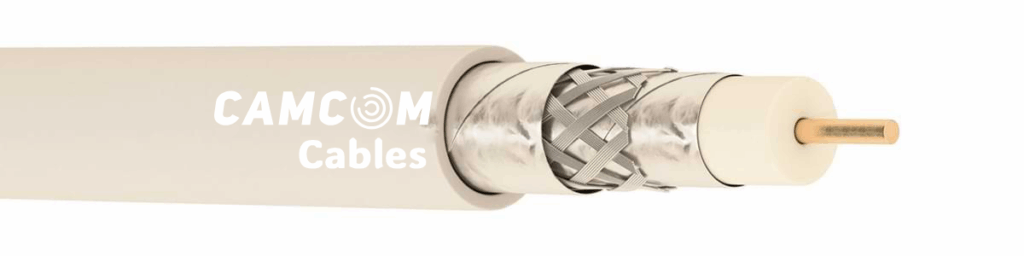

RG-6/U-4 Trishield Coaxial Cable
Product Code:
| 1 – Conductor | : | 1.0 mm ø electrolytic solid copper conductor |
| 2 – Insulation | : | 4.60 mm ø physical foam polyethylene |
| 3 – Screen : Al/PET tape | : | Insulations are stranded into pairs |
| 4 – 2nd Screen : Aluminum braiding | : | Pairs are stranded together with star shaped separator |
| 5 – Outer Jacket: UV resistant PVC, halogen-free, polyethylene outer jacket | : | UV resistant halogen-free outer jacket |
| Inner Conductor Resistance (20°C) |
Outer Conductor Resistance (20°C) |
Insulation Resistance |
Mutual Capacitance |
Propagation Velocity |
Operating Voltage |
Test Voltage |
Characteristic Impedance |
|---|---|---|---|---|---|---|---|
| <22.1 | <17.6 | >2000 | 53±2 | 0,84 | 1.3 | 3 | 75±3 |
| Smoke Density Test | Corrosive Gas Test | Halogen-free Test | Flame Retardancy Test |
|---|---|---|---|
| IEC 61034-2 VDE 0482-1034-2 EN 61034-2 |
IEC 60754-2 VDE 0482-267-2-3 EN 50267-2-3 |
IEC 60754-1 VDE 0482-267-2-1 EN 50267-2-1 |
IEC 60332-1-2 VDE 0482-332-1-2 EN 60332-1-2 |
| Part Number | Conductor Count | Conductor Diameter (mm) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.706.1.5.2.0102.2.0640 | 1 | 1 | 7 | 17.2 | 54 | 100/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 15xD mm | -40°C~+70°C |
