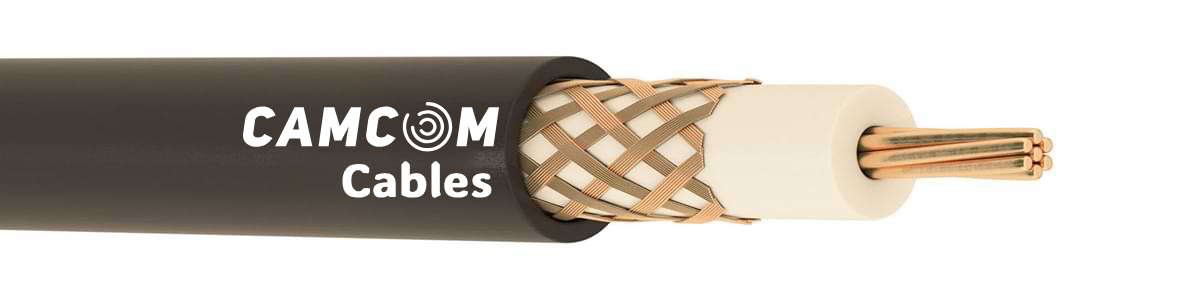

RG-8/U Coaxial Cable
Product Code: RG-8/U
| 1 – Conductor | : | 7x 0.90 mm ø stranded copper conductor |
| 2 – Insulation | : | 7.20 mm ø solid polyethylene |
| 3 – Screen | : | Annealed copper wire braiding |
| 4 – Outer Jacket | : | UV resistant PVC, halogen-free, polyethylene outer jacket |
| Insulation Resistance |
Mutual Capacitance |
Propagation Velocity |
Operating Voltage |
Test Voltage |
Characteristic Impedance |
|---|---|---|---|---|---|
| >2000 | 84 | 0,81 | 2 | 5 | 50±2 |
| Manufacturing Std. | Smoke Density Test | Corrosive Gas Test | Halogen-free Test | Flame Retardancy Test |
|---|---|---|---|---|
| MIL-C-17 | IEC 61034-2 VDE 0482-1034-2 EN 61034-2 |
IEC 60754-2 VDE 0482-267-2-3 EN 50267-2-3 |
IEC 60754-1 VDE 0482-267-2-1 EN 50267-2-1 |
IEC 60332-1-2 VDE 0482-332-1-2 EN 60332-1-2 |
| Part Number | Conductor Count | Conductor Diameter (mm) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.701.0.5.2.0790.0.0800 | 7 | 0.9 | 10.1 | 73 | 154 | 100/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 15xD mm | -40°C~+70°C |
