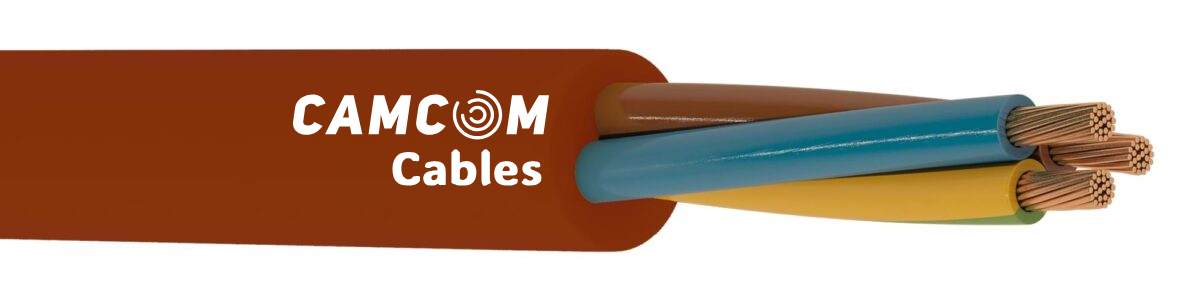

SIMH Silicone Cable

Product Code: SIMH

1 – Conductor	:	Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – Insulation	:	Silicone compound EI2 (VDE 0293; HD 308 S2)
3 – Stranding	:	In layers
4 – Outer Jacket	:	Silicone compound (EN 50363-2-1 EM9)

Conductor Diameter	Conductor Resistance Ω/km (20 °C)	Operating VoltageV DC	Test Voltage (@ 1 minute) V DC
0.50 mm²	39.0	300/500	2000
0.75 mm²	26.0	300/500	2000
1.00 mm²	19.5	300/500	2000
1.50 mm²	13.3	300/500	2000
2.50 mm²	7.98	300/500	2000
4.00 mm²	4.95	300/500	2000
6.00 mm²	3.3	300/500	2000
10.00 mm²	1.91	300/500	2000

Smoke Density Test	Corrosive Gas Test	Halogen-free Test	Flame Retardancy Test	Flame Propagation Test	Fire Resistance Test (FE180)
IEC 61034-2, VDE 0482-1034-2, BS EN 61034-2, BS EN 61034-2	IEC 60754-2, VDE 0482-754-2, EN 60754-2, BS EN 60754-2	IEC 60754-1, VDE 0482-754-1, EN 60754-1, BS EN 60754-1	IEC 60332-1-2, VDE 0482-332-1-2, EN 60332-1-2, BS EN 60332-1-2	IEC 60332-3-24, VDE 0482-332-3-24, EN 60332-3-24, BS EN 60332-3-24	IEC 60331-21

Bending Radius	Temperature Range Operating
8xD mm	-60°C ~ +180°C
