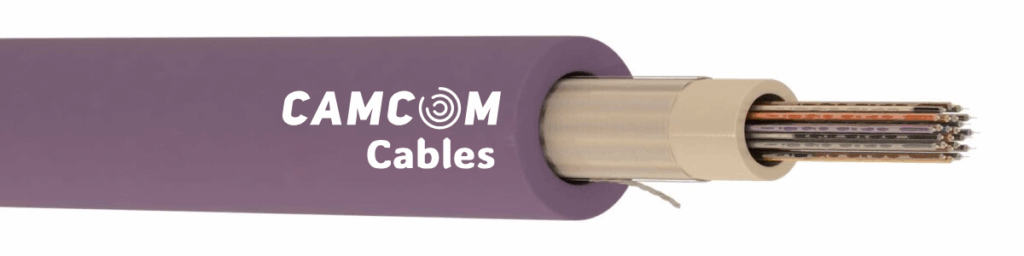

U-D(ZN)H b2ca Fiber Optic Cable
Product Code: SLT(FR)-NMA-SHFJ-(GY)
| 1 – Optical Fiber Type | : | Single Mode / Multi Mode. |
| 2 – Tube Material | : | Halogen-free Flame Retardant Polybutylene Terephthalate (HFFR PBT). |
| 3 – Tube Filling Compound Material | : | Water-swellable yarn. |
| 4 – Dielectric Tensile Strength Member | : | Water-swellable glass yarn. |
| 5 – Outer Jacket | : | UV resistant, halogen-free outer jacket. |
| Core Count | Core Type | Tube Count | Tube Diameter (mm) | Cable Diameter (mm) | Cable Weight (kg/km) |
|---|---|---|---|---|---|
| 2 | SM / MM | 1 | 2,3 | 6,7 | 57 |
| 4 | SM / MM | 1 | 2,3 | 6,7 | 57 |
| 6 | SM / MM | 1 | 2,3 | 6,7 | 57 |
| 8 | SM / MM | 1 | 2,3 | 6,7 | 57 |
| 12 | SM / MM | 1 | 2,3 | 6,7 | 57 |
| 16 | SM / MM | 1 | 3,0 | 7,28 | 63 |
| 24 | SM / MM | 1 | 3,0 | 7,2 | 63 |
| Test | Reference Standard | Specified Value |
|---|---|---|
| Maximum Tensile Strength | IEC 60794-1-21-E1 | ≥ 1000 N or 2000 N |
| Crush Resistance | IEC 60794-1-21-E3 | 2000 N/100 mm |
| Smoke Density | IEC 61034-2 | |
| Corrosive Gas | IEC 60754-2 | |
| Halogen-Free | IEC 60754-1 | |
| Flame Retardancy | IEC 60332-1-2 |
| Temperature Range | |
|---|---|
| Transportation | -40 °C to 70 °C |
| Storage | -40 °C to 70 °C |
| Installation | -30 °C to 60 °C |
| Operation | -40 °C to 70 °C |
| Marking | Camcom – Signaling Innovation – Date of Manufacture – Fiber Count and Type – Length Marking |
| Packing | Wooden drum with protection |
| Delivery Lengths | 2 km, 4 km ± %5 tolerance |
