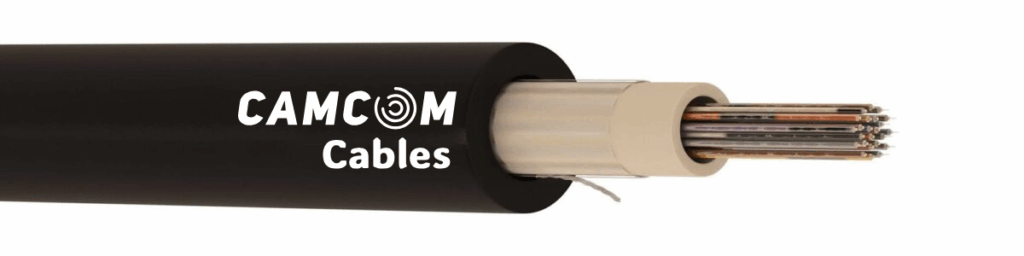

1 – Optical fiber core ¹
2 – Waterproof thixotropic jelly
3 – PBT Tube
4 – Non-metallic strength member (Glass yarn)
5 – Ripcord
6 – UV resistant halogen-free (LSOH) outer jacket
| Part Number |
Core Type |
Core Count |
Tube Count |
Tube Diameter (mm) |
Cable Diameter (mm) |
Cable Weight (kg/km) |
| 3.208.0.6.3.0900.0.0002 |
SM G.652.D |
2 |
1 |
2,8 |
6,1 |
41 |
| 3.208.0.6.3.0900.0.0004 |
SM G.652.D |
4 |
1 |
2,8 |
6,1 |
41 |
| 3.208.0.6.3.0900.0.0006 |
SM G.652.D |
6 |
1 |
2,8 |
6,1 |
41 |
| 3.208.0.6.3.0900.0.0008 |
SM G.652.D |
8 |
1 |
2,8 |
6,1 |
41 |
| 3.208.0.6.3.0900.0.0012 |
SM G.652.D |
12 |
1 |
2,8 |
6,1 |
41 |
| 3.208.0.6.3.0900.0.0016 |
SM G.652.D |
16 |
1 |
3,8 |
7,1 |
56 |
| 3.208.0.6.3.0900.0.0020 |
SM G.652.D |
20 |
1 |
3,8 |
7,1 |
56 |
| 3.208.0.6.3.0900.0.0024 |
SM G.652.D |
24 |
1 |
3,8 |
7,1 |
56 |
| Part Number |
Core Type |
Core Count |
Tube Count |
Tube Diameter (mm) |
Cable Diameter (mm) |
Cable Weight (kg/km) |
| 3.208.0.6.3.0625.0.0002 |
OM1 |
2 |
1 |
2,8 |
6,1 |
41 |
| 3.208.0.6.3.0625.0.0004 |
OM1 |
4 |
1 |
2,8 |
6,1 |
41 |
| 3.208.0.6.3.0625.0.0006 |
OM1 |
6 |
1 |
2,8 |
6,1 |
41 |
| 3.208.0.6.3.0625.0.0008 |
OM1 |
8 |
1 |
2,8 |
6,1 |
41 |
| 3.208.0.6.3.0625.0.0012 |
OM1 |
12 |
1 |
2,8 |
6,1 |
41 |
| 3.208.0.6.3.0625.0.0016 |
OM1 |
16 |
1 |
3,8 |
7,1 |
56 |
| 3.208.0.6.3.0625.0.0020 |
OM1 |
20 |
1 |
3,8 |
7,1 |
56 |
| 3.208.0.6.3.0625.0.0024 |
OM1 |
24 |
1 |
3,8 |
7,1 |
56 |
| Part Number |
Core Type |
Core Count |
Tube Count |
Tube Diameter (mm) |
Cable Diameter (mm) |
Cable Weight (kg/km) |
| 3.208.0.6.3.0502.0.0002 |
OM2 |
2 |
1 |
2,8 |
6,1 |
41 |
| 3.208.0.6.3.0502.0.0004 |
OM2 |
4 |
1 |
2,8 |
6,1 |
41 |
| 3.208.0.6.3.0502.0.0006 |
OM2 |
6 |
1 |
2,8 |
6,1 |
41 |
| 3.208.0.6.3.0502.0.0008 |
OM2 |
8 |
1 |
2,8 |
6,1 |
41 |
| 3.208.0.6.3.0502.0.0012 |
OM2 |
12 |
1 |
2,8 |
6,1 |
41 |
| 3.208.0.6.3.0502.0.0016 |
OM2 |
16 |
1 |
3,8 |
7,1 |
57 |
| 3.208.0.6.3.0502.0.0020 |
OM2 |
20 |
1 |
3,8 |
7,1 |
56 |
| 3.208.0.6.3.0502.0.0024 |
OM2 |
24 |
1 |
3,8 |
7,1 |
56 |
| Part Number |
Core Type |
Core Count |
Tube Count |
Tube Diameter (mm) |
Cable Diameter (mm) |
Cable Weight (kg/km) |
| 3.208.0.6.3.0503.0.0002 |
OM3 |
2 |
1 |
2,8 |
6,1 |
41 |
| 3.208.0.6.3.0503.0.0004 |
OM3 |
4 |
1 |
2,8 |
6,1 |
41 |
| 3.208.0.6.3.0503.0.0006 |
OM3 |
6 |
1 |
2,8 |
6,1 |
41 |
| 3.208.0.6.3.0503.0.0008 |
OM3 |
8 |
1 |
2,8 |
6,1 |
41 |
| 3.208.0.6.3.0503.0.0012 |
OM3 |
12 |
1 |
2,8 |
6,1 |
41 |
| 3.208.0.6.3.0503.0.0016 |
OM3 |
16 |
1 |
3,8 |
7,1 |
56 |
| 3.208.0.6.3.0503.0.0020 |
OM3 |
20 |
1 |
3,8 |
7,1 |
56 |
| 3.208.0.6.3.0503.0.0024 |
OM3 |
24 |
1 |
3,8 |
7,1 |
56 |
|
Test Standard |
Specified Value |
Acceptance Criteria |
| Maximum Installation Tension ² |
IEC 60794-1-2-E1 |
1.0 x W(N), min. 1200 N |
Fiber strain ≤ 0.33% |
| Maximum Operation Tension |
IEC 60794-1-2-E1 |
0.5 x W(N), min. 600 N |
Δα ≤ 0.05 dB, No fiber strain |
| Crush Strength |
IEC 60794-1-2-E3 |
1500 N / 100 mm, max. 15 min. |
Δα ≤ 0.05 dB, No damage |
| Impact |
IEC 60794-1-2-E4 |
10 Nm, 3 impacts, R= 300 mm |
Δα ≤ 0.05 dB after the test |
| Torsion |
IEC 60794-1-2-E7 |
1 m. 100N, +/- 180°, 10 cycles |
Δα ≤ 0.05 dB, No damage |
| Repeated Bending |
IEC 60794-1-2-E6 |
R=20x D, 100 N, 35 cycles |
No damage |
| Bending Radius |
IEC 60794-1-2-E11 |
R=20x D, 4 turns, 3 cycles |
Δα ≤ 0.05 dB, No damage |
| Temperature Cycling |
IEC 60794-1-2-F1 |
-20°C to +70°C |
Δα ≤ 0.05 dB/km |
| Waterproofness |
IEC 60794-1-2-F5B |
Sample= 3 m, water column= 1 m |
No water leakage in 24 hours |
| Minimum Bending Radius |
| Operation |
20 x cable Ø |
| Fixed |
15 x cable Ø |
|
Temperature Range |
| Storage |
-40°C to +70°C |
Installation |
-30°C to +60°C |
| Transport |
-40°C to +70°C |
Operating |
-20°C to +70°C |
| Marking |
Camcom – Signaling Innovation – Date of Manufacture – Fiber Count and Type – Length Marking |
| Packing |
Wooden drum with protection |
| Delivery Lengths |
2 km, 4 km ± %5 tolerance |
