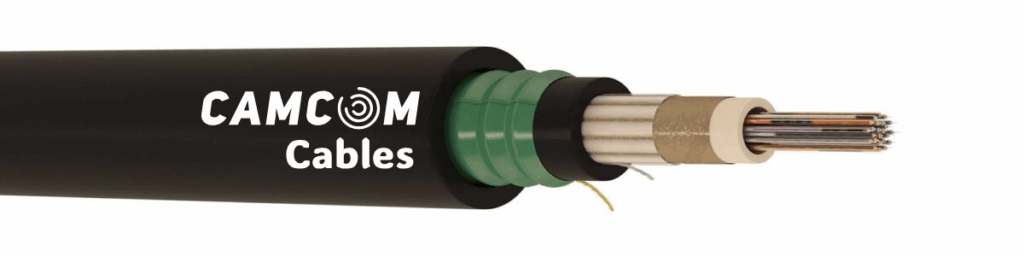

U-D(ZN)H(SR)H FE180 Fire Resistant Fiber Optic Cable

Product Code: SLT-SA-DHFJ-(GY30)-(FR)

1 – Optical fiber core ¹

2 – Waterproof thixotropic jelly

3 – PBT Tube

4 – Mica tape

5 – Non-metallic strength member (Glass yarn)

6 – Ripcord

7 – UV resistant halogen-free (LSOH) inner jacket

8 – Ripcord

9 – Corrugated steel tape

10 – UV resistant halogen-free (LSOH) outer jacket

Part Number	Core Type	Core Count	Tube Diameter (mm)	Cable Diameter (mm)	Cable Weight (kg/km)
3.207.0.6.6.0900.0.0002	SM G.652.D	2	2,8	11,7	180
3.207.0.6.6.0900.0.0004	SM G.652.D	4	2,8	11,7	185
3.207.0.6.6.0900.0.0006	SM G.652.D	6	2,8	11,7	185
3.207.0.6.6.0900.0.0008	SM G.652.D	8	2,8	11,7	185
3.207.0.6.6.0900.0.0012	SM G.652.D	12	3,4	12,2	200
3.207.0.6.6.0900.0.0016	SM G.652.D	16	4,2	13	220
3.207.0.6.6.0900.0.0020	SM G.652.D	20	4,2	13	220
3.207.0.6.6.0900.0.0024	SM G.652.D	24	4,2	13	220

Part Number	Core Type	Core Count	Tube Diameter (mm)	Cable Diameter (mm)	Cable Weight (kg/km)
3.207.0.6.6.0625.0.0002	OM1	2	2,8	11,7	180
3.207.0.6.6.0625.0.0004	OM1	4	2,8	11,7	185
3.207.0.6.6.0625.0.0006	OM1	6	2,8	11,7	185
3.207.0.6.6.0625.0.0008	OM1	8	2,8	11,7	185
3.207.0.6.6.0625.0.0012	OM1	12	3,4	12,2	200
3.207.0.6.6.0625.0.0016	OM1	16	4,2	13	220
3.207.0.6.6.0625.0.0020	OM1	20	4,2	13	220
3.207.0.6.6.0625.0.0024	OM1	24	4,2	13	220

Part Number	Core Type	Core Count	Tube Diameter (mm)	Cable Diameter (mm)	Cable Weight (kg/km)
3.207.0.6.6.0502.0.0002	OM2	2	2,8	11,7	180
3.207.0.6.6.0502.0.0004	OM2	4	2,8	11,7	185
3.207.0.6.6.0502.0.0006	OM2	6	2,8	11,7	185
3.207.0.6.6.0502.0.0008	OM2	8	2,8	11,7	185
3.207.0.6.6.0502.0.0012	OM2	12	3,4	12,2	200
3.207.0.6.6.0502.0.0016	OM2	16	4,2	13	220
3.207.0.6.6.0502.0.0020	OM2	20	4,2	13	220
3.207.0.6.6.0502.0.0024	OM2	24	4,2	13	220

Part Number	Core Type	Core Count	Tube Diameter (mm)	Cable Diameter (mm)	Cable Weight (kg/km)
3.207.0.6.6.0503.0.0002	OM3	2	2,8	11,7	180
3.207.0.6.6.0503.0.0004	OM3	4	2,8	11,7	185
3.207.0.6.6.0503.0.0006	OM3	6	2,8	11,7	185
3.207.0.6.6.0503.0.0008	OM3	8	2,8	11,7	185
3.207.0.6.6.0503.0.0012	OM3	12	3,4	12,2	200
3.207.0.6.6.0503.0.0016	OM3	16	4,2	13	220
3.207.0.6.6.0503.0.0020	OM3	20	4,2	13	220
3.207.0.6.6.0503.0.0024	OM3	24	4,2	13	220

Test Standard	Specified Value	Acceptance Criteria
Maximum Installation Tension ²	IEC 60794-1-2-E1	1.5 x W(N), min. 3000 N	Fiber strain ≤ 0.33%
Maximum Operation Tension	IEC 60794-1-2-E1	0.5 x W(N), min. 1000 N	Δα ≤ 0.05 dB, No fiber strain
Crush Strength	IEC 60794-1-2-E3	2500 N / 100 mm, max. 15 min.	Δα ≤ 0.05 dB, No damage
Impact	IEC 60794-1-2-E4	10 Nm, 3 impacts, R= 300 mm	Δα ≤ 0.05 dB after the test
Torsion	IEC 60794-1-2-E7	1 m. 100N, +/- 180°, 10 cycles	Δα ≤ 0.05 dB, No damage
Repeated Bending	IEC 60794-1-2-E6	R=20x D, 100 N, 35 cycles	No damage
Bending Radius	IEC 60794-1-2-E11	R=20x D, 4 turns, 3 cycles	Δα ≤ 0.05 dB, No damage
Temperature Cycling	IEC 60794-1-2-F1	-20°C to +70°C	Δα ≤ 0.05 dB/km
Waterproofness	IEC 60794-1-2-F5B	Sample= 3 m, water column= 1 m	No water leakage in 24 hours.

Minimum Bending Radius
Operation	20 x cable Ø
Fixed	10 x cable Ø

	Temperature Range
Storage	0°C to + 70°C	Installation	-30°C to +60°C
Transport	0°C to + 70°C	Operating	-20°C to +70°C

Marking	Camcom – Signaling Innovation – Date of Manufacture – Fiber Count and Type – Length Marking
Packing	Wooden drum with protection
Delivery Lengths	2 km, 4 km ± %5 tolerance
