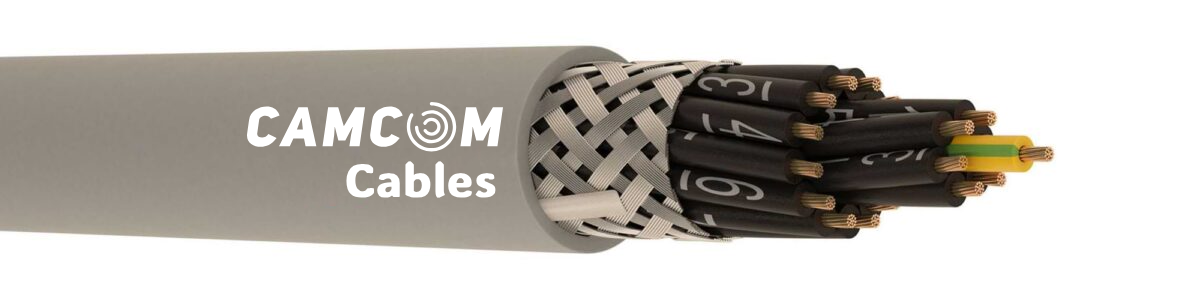

YSLCY-JZ Control Cable
Product Code: YSLCY-JZ
| 1 – Conductor | : | Stranded electrolytic annealed copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295) |
| 2 – Insulation | : | PVC (DIN VDE 0207, EN 50363-3, TS EN 50290-2-21 TI2), Black insulation, white number coded and a Y/G insulation (DIN VDE 0293, TS EN 50334) |
| 3 – Stranding | : | In layers |
| 4 – Wrapping | : | Polyester tape |
| 5 – Screen | : | Tinned copper braiding |
| 6 – Outer Jacket | : | UV resistant PVC outer jacket (EN 50363-4-1, DIN VDE 207 TM2). RAL 7001 (Grey) |
| Cross Section | Conductor Resistance Ω/km (20 °C) |
Insulation Resistance (@500V DC) MΩ/km |
Operating Voltage
V DC |
Test Voltage
(@ 1 minute) |
|---|---|---|---|---|
| 0.50 mm² | 39.0 | 20 | 300/500 | 2000 |
| 0.75 mm² | 26.0 | 20 | 300/500 | 2000 |
| 1.00 mm² | 19.5 | 20 | 300/500 | 2000 |
| 1.50 mm² | 13.3 | 20 | 300/500 | 2000 |
| 2.50 mm² | 7.98 | 20 | 300/500 | 2000 |
| 4.00 mm² | 4.95 | 20 | 300/500 | 2000 |
| 6.00 mm² | 3.30 | 20 | 300/500 | 2000 |
| 10.00 mm² | 1.91 | 20 | 300/500 | 2000 |
| 16.00 mm² | 1.21 | 20 | 300/500 | 2000 |
| Flame Retardancy Test |
|---|
| IEC 60332-1-2, VDE 0482-332-1-2, BS EN 60332-1-2 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.602.3.2.2.0050.1.0002 | 2 | 0,5 | 5,3 | 18 | 46 | 100/500/1000 |
| 3.602.3.2.2.0050.0.0003 | 3 | 0,5 | 5,6 | 22,4 | 54 | 100/500/1000 |
| 3.602.3.2.2.0050.0.0004 | 4 | 0,5 | 6 | 28,2 | 64 | 100/500/1000 |
| 3.602.3.2.2.0050.0.0005 | 5 | 0,5 | 6,5 | 33 | 75 | 100/500/1000 |
| 3.602.3.2.2.0050.0.0006 | 6 | 0,5 | 7,2 | 41,6 | 92 | 100/500/1000 |
| 3.602.3.2.2.0050.0.0007 | 7 | 0,5 | 7,2 | 46 | 95 | 100/500/1000 |
| 3.602.3.2.2.0050.0.0008 | 8 | 0,5 | 7,7 | 51,5 | 109 | 100/500/1000 |
| 3.602.3.2.2.0050.0.0009 | 9 | 0,5 | 9 | 56 | 126 | 100/500/1000 |
| 3.602.3.2.2.0050.0.0010 | 10 | 0,5 | 9 | 60,4 | 130 | 100/500/1000 |
| 3.602.3.2.2.0050.0.0012 | 12 | 0,5 | 9,3 | 69,8 | 145 | 100/500/1000 |
| 3.602.3.2.2.0050.0.0014 | 14 | 0,5 | 9,7 | 79,3 | 161 | 100/500/1000 |
| 3.602.3.2.2.0050.0.0016 | 16 | 0,5 | 10,3 | 89,1 | 181 | 100/500/1000 |
| 3.602.3.2.2.0050.0.0018 | 18 | 0,5 | 10,9 | 103,5 | 206 | 100/500/1000 |
| 3.602.3.2.2.0050.0.0020 | 20 | 0,5 | 11,5 | 113,6 | 229 | 100/500/1000 |
| 3.602.3.2.2.0050.0.0024 | 24 | 0,5 | 12,8 | 135 | 264 | 100/500/1000 |
| 3.602.3.2.2.0050.0.0025 | 25 | 0,5 | 12,8 | 139,4 | 278 | 100/500/1000 |
| 3.602.3.2.2.0050.0.0027 | 27 | 0,5 | 13 | 148,5 | 286 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.602.3.2.2.0075.1.0002 | 2 | 0,75 | 5,7 | 22,8 | 54 | 100/500/1000 |
| 3.602.3.2.2.0075.0.0003 | 3 | 0,75 | 6 | 30,4 | 66 | 100/500/1000 |
| 3.602.3.2.2.0075.0.0004 | 4 | 0,75 | 6,5 | 37,2 | 78 | 100/500/1000 |
| 3.602.3.2.2.0075.0.0005 | 5 | 0,75 | 7,2 | 48,2 | 97 | 100/500/1000 |
| 3.602.3.2.2.0075.0.0006 | 6 | 0,75 | 7,9 | 55,4 | 114 | 100/500/1000 |
| 3.602.3.2.2.0075.0.0007 | 7 | 0,75 | 7,9 | 62 | 119 | 100/500/1000 |
| 3.602.3.2.2.0075.0.0008 | 8 | 0,75 | 8,4 | 68,9 | 136 | 100/500/1000 |
| 3.602.3.2.2.0075.0.0009 | 9 | 0,75 | 9,8 | 76,6 | 156 | 100/500/1000 |
| 3.602.3.2.2.0075.0.0010 | 10 | 0,75 | 9,8 | 83,2 | 160 | 100/500/1000 |
| 3.602.3.2.2.0075.0.0012 | 12 | 0,75 | 10,2 | 97,1 | 184 | 100/500/1000 |
| 3.602.3.2.2.0075.0.0014 | 14 | 0,75 | 10,8 | 115,8 | 210 | 100/500/1000 |
| 3.602.3.2.2.0075.0.0016 | 16 | 0,75 | 11,4 | 130,1 | 236 | 100/500/1000 |
| 3.602.3.2.2.0075.0.0018 | 18 | 0,75 | 12 | 144,7 | 263 | 100/500/1000 |
| 3.602.3.2.2.0075.0.0020 | 20 | 0,75 | 12,7 | 159,8 | 293 | 100/500/1000 |
| 3.602.3.2.2.0075.0.0024 | 24 | 0,75 | 14 | 186,4 | 334 | 100/500/1000 |
| 3.602.3.2.2.0075.0.0025 | 25 | 0,75 | 14,1 | 195,9 | 355 | 100/500/1000 |
| 3.602.3.2.2.0075.0.0027 | 27 | 0,75 | 14,5 | 211,5 | 372 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.602.3.2.2.0100.1.0002 | 2 | 1 | 6,1 | 27,1 | 63 | 100/500/1000 |
| 3.602.3.2.2.0100.0.0003 | 3 | 1 | 6,5 | 35,6 | 76 | 100/500/1000 |
| 3.602.3.2.2.0100.0.0004 | 4 | 1 | 7,1 | 48,3 | 96 | 100/500/1000 |
| 3.602.3.2.2.0100.0.0005 | 5 | 1 | 7,7 | 57 | 113 | 100/500/1000 |
| 3.602.3.2.2.0100.0.0006 | 6 | 1 | 8,4 | 65,4 | 132 | 100/500/1000 |
| 3.602.3.2.2.0100.0.0007 | 7 | 1 | 8,4 | 73,7 | 138 | 100/500/1000 |
| 3.602.3.2.2.0100.0.0008 | 8 | 1 | 9,2 | 82,1 | 161 | 100/500/1000 |
| 3.602.3.2.2.0100.0.0009 | 9 | 1 | 10,8 | 97,9 | 190 | 100/500/1000 |
| 3.602.3.2.2.0100.0.0010 | 10 | 1 | 10,8 | 106,1 | 196 | 100/500/1000 |
| 3.602.3.2.2.0100.0.0012 | 12 | 1 | 11,2 | 123,4 | 225 | 100/500/1000 |
| 3.602.3.2.2.0100.0.0014 | 14 | 1 | 11,7 | 141,3 | 252 | 100/500/1000 |
| 3.602.3.2.2.0100.0.0016 | 16 | 1 | 12,5 | 159,5 | 283 | 100/500/1000 |
| 3.602.3.2.2.0100.0.0018 | 18 | 1 | 13,1 | 178,3 | 317 | 100/500/1000 |
| 3.602.3.2.2.0100.0.0020 | 20 | 1 | 13,9 | 195,6 | 352 | 100/500/1000 |
| 3.602.3.2.2.0100.0.0024 | 24 | 1 | 15,3 | 227,9 | 400 | 100/500/1000 |
| 3.602.3.2.2.0100.0.0025 | 25 | 1 | 15,4 | 240,9 | 427 | 100/500/1000 |
| 3.602.3.2.2.0100.0.0027 | 27 | 1 | 15,8 | 257,9 | 446 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.602.3.2.2.0150.1.0002 | 2 | 1,5 | 6,7 | 36,5 | 77 | 100/500/1000 |
| 3.602.3.2.2.0150.0.0003 | 3 | 1,5 | 7,3 | 53,9 | 102 | 100/500/1000 |
| 3.602.3.2.2.0150.0.0004 | 4 | 1,5 | 7,8 | 66,8 | 121 | 100/500/1000 |
| 3.602.3.2.2.0150.0.0005 | 5 | 1,5 | 8,6 | 80,3 | 146 | 100/500/1000 |
| 3.602.3.2.2.0150.0.0006 | 6 | 1,5 | 9,4 | 93,5 | 172 | 100/500/1000 |
| 3.602.3.2.2.0150.0.0007 | 7 | 1,5 | 9,4 | 106,4 | 182 | 100/500/1000 |
| 3.602.3.2.2.0150.0.0008 | 8 | 1,5 | 10,2 | 120,6 | 211 | 100/500/1000 |
| 3.602.3.2.2.0150.0.0009 | 9 | 1,5 | 12,1 | 141,4 | 250 | 100/500/1000 |
| 3.602.3.2.2.0150.0.0010 | 10 | 1,5 | 12,1 | 154,4 | 260 | 100/500/1000 |
| 3.602.3.2.2.0150.0.0012 | 12 | 1,5 | 12,5 | 181,6 | 297 | 100/500/1000 |
| 3.602.3.2.2.0150.0.0014 | 14 | 1,5 | 13,2 | 207,9 | 337 | 100/500/1000 |
| 3.602.3.2.2.0150.0.0016 | 16 | 1,5 | 14 | 235,9 | 379 | 100/500/1000 |
| 3.602.3.2.2.0150.0.0018 | 18 | 1,5 | 14,7 | 264,3 | 426 | 100/500/1000 |
| 3.602.3.2.2.0150.0.0020 | 20 | 1,5 | 15,6 | 291,3 | 474 | 100/500/1000 |
| 3.602.3.2.2.0150.0.0024 | 24 | 1,5 | 17,4 | 344,2 | 553 | 100/500/1000 |
| 3.602.3.2.2.0150.0.0025 | 25 | 1,5 | 17,5 | 361,6 | 586 | 100/500/1000 |
| 3.602.3.2.2.0150.0.0027 | 27 | 1,5 | 17,8 | 387,7 | 609 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.602.3.2.2.0250.1.0002 | 2 | 2,5 | 8,1 | 56,9 | 114 | 100/500/1000 |
| 3.602.3.2.2.0250.0.0003 | 3 | 2,5 | 8,6 | 80,4 | 146 | 100/500/1000 |
| 3.602.3.2.2.0250.0.0004 | 4 | 2,5 | 9,4 | 102,2 | 178 | 100/500/1000 |
| 3.602.3.2.2.0250.0.0005 | 5 | 2,5 | 10,5 | 125,8 | 220 | 100/500/1000 |
| 3.602.3.2.2.0250.0.0006 | 6 | 2,5 | 11,5 | 153,1 | 265 | 100/500/1000 |
| 3.602.3.2.2.0250.0.0007 | 7 | 2,5 | 11,5 | 174,5 | 281 | 100/500/1000 |
| 3.602.3.2.2.0250.0.0008 | 8 | 2,5 | 12,5 | 197,8 | 329 | 100/500/1000 |
| 3.602.3.2.2.0250.0.0009 | 9 | 2,5 | 14,8 | 224,5 | 381 | 100/500/1000 |
| 3.602.3.2.2.0250.0.0010 | 10 | 2,5 | 14,8 | 245,9 | 397 | 100/500/1000 |
| 3.602.3.2.2.0250.0.0012 | 12 | 2,5 | 15,3 | 291,7 | 456 | 100/500/1000 |
| 3.602.3.2.2.0250.0.0014 | 14 | 2,5 | 16,1 | 335,6 | 519 | 100/500/1000 |
| 3.602.3.2.2.0250.0.0016 | 16 | 2,5 | 17,2 | 383,3 | 591 | 100/500/1000 |
| 3.602.3.2.2.0250.0.0018 | 18 | 2,5 | 18,3 | 431 | 676 | 100/500/1000 |
| 3.602.3.2.2.0250.0.0020 | 20 | 2,5 | 19,5 | 475,7 | 756 | 100/500/1000 |
| 3.602.3.2.2.0250.0.0024 | 24 | 2,5 | 21,7 | 565,2 | 875 | 100/500/1000 |
| 3.602.3.2.2.0250.0.0025 | 25 | 2,5 | 21,9 | 591,4 | 938 | 100/500/1000 |
| 3.602.3.2.2.0250.0.0027 | 27 | 2,5 | 22,4 | 642,5 | 982 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.602.3.2.2.0400.1.0002 | 2 | 4 | 9,2 | 85,2 | 165 | 100/500/1000 |
| 3.602.3.2.2.0400.0.0003 | 3 | 4 | 9,8 | 120,7 | 199 | 100/500/1000 |
| 3.602.3.2.2.0400.0.0004 | 4 | 4 | 10,8 | 160,6 | 252 | 100/500/1000 |
| 3.602.3.2.2.0400.0.0005 | 5 | 4 | 11,9 | 197,3 | 310 | 100/500/1000 |
| 3.602.3.2.2.0400.0.0006 | 6 | 4 | 13,1 | 235,5 | 370 | 100/500/1000 |
| 3.602.3.2.2.0400.0.0007 | 7 | 4 | 13,1 | 269,8 | 395 | 100/500/1000 |
| 3.602.3.2.2.0400.0.0008 | 8 | 4 | 14,3 | 308,7 | 466 | 100/500/1000 |
| 3.602.3.2.2.0400.0.0009 | 9 | 4 | 17,1 | 354,9 | 549 | 100/500/1000 |
| 3.602.3.2.2.0400.0.0010 | 10 | 4 | 17,1 | 389,2 | 574 | 100/500/1000 |
| 3.602.3.2.2.0400.0.0012 | 12 | 4 | 17,7 | 462,3 | 663 | 100/500/1000 |
| 3.602.3.2.2.0400.0.0014 | 14 | 4 | 18,8 | 532,5 | 760 | 100/500/1000 |
| 3.602.3.2.2.0400.0.0016 | 16 | 4 | 20 | 603,1 | 860 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.602.3.2.2.0600.1.0002 | 2 | 6 | 11 | 126,6 | 236 | 100/500/1000 |
| 3.602.3.2.2.0600.0.0003 | 3 | 6 | 11,8 | 179,2 | 289 | 100/500/1000 |
| 3.602.3.2.2.0600.0.0004 | 4 | 6 | 12,9 | 233,7 | 361 | 100/500/1000 |
| 3.602.3.2.2.0600.0.0005 | 5 | 6 | 14,3 | 288,2 | 447 | 100/500/1000 |
| 3.602.3.2.2.0600.0.0006 | 6 | 6 | 15,8 | 343,7 | 538 | 100/500/1000 |
| 3.602.3.2.2.0600.0.0007 | 7 | 6 | 15,8 | 395,1 | 575 | 100/500/1000 |
| 3.602.3.2.2.0600.0.0008 | 8 | 6 | 17,3 | 452,3 | 682 | 100/500/1000 |
| 3.602.3.2.2.0600.0.0009 | 9 | 6 | 20,9 | 518,8 | 809 | 100/500/1000 |
| 3.602.3.2.2.0600.0.0010 | 10 | 6 | 20,9 | 570,3 | 847 | 100/500/1000 |
| 3.602.3.2.2.0600.0.0012 | 12 | 6 | 21,8 | 679,8 | 990 | 100/500/1000 |
| 3.602.3.2.2.0600.0.0014 | 14 | 6 | 23,1 | 785,1 | 1134 | 100/500/1000 |
| 3.602.3.2.2.0600.0.0016 | 16 | 6 | 24,6 | 891,7 | 1282 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.602.3.2.2.1000.1.0002 | 2 | 10 | 13,2 | 206,3 | 356 | 100/500/1000 |
| 3.602.3.2.2.1000.0.0003 | 3 | 10 | 14,1 | 298,1 | 444 | 100/500/1000 |
| 3.602.3.2.2.1000.0.0004 | 4 | 10 | 15,6 | 390,8 | 563 | 100/500/1000 |
| 3.602.3.2.2.1000.0.0005 | 5 | 10 | 17,4 | 485,8 | 704 | 100/500/1000 |
| 3.602.3.2.2.1000.0.0006 | 6 | 10 | 19,4 | 581 | 856 | 100/500/1000 |
| 3.602.3.2.2.1000.0.0007 | 7 | 10 | 19,4 | 670 | 922 | 100/500/1000 |
| 3.602.3.2.2.1000.0.0008 | 8 | 10 | 21,2 | 761,9 | 1071 | 100/500/1000 |
| 3.602.3.2.2.1000.0.0009 | 9 | 10 | 25,7 | 859,1 | 1261 | 100/500/1000 |
| 3.602.3.2.2.1000.0.0010 | 10 | 10 | 25,7 | 948,1 | 1337 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.602.3.2.2.1600.1.0002 | 2 | 16 | 17,5 | 321,3 | 607 | 100/500/1000 |
| 3.602.3.2.2.1600.0.0003 | 3 | 16 | 18,8 | 467,7 | 741 | 100/500/1000 |
| 3.602.3.2.2.1600.0.0004 | 4 | 16 | 21,1 | 617 | 950 | 100/500/1000 |
| 3.602.3.2.2.1600.0.0005 | 5 | 16 | 23,6 | 767,2 | 1197 | 100/500/1000 |
| 3.602.3.2.2.1600.0.0006 | 6 | 16 | 26,1 | 900,2 | 1405 | 100/500/1000 |
| 3.602.3.2.2.1600.0.0007 | 7 | 16 | 26,1 | 1040,4 | 1537 | 100/500/1000 |
| 3.602.3.2.2.1600.0.0008 | 8 | 16 | 27,5 | 1185,8 | 1700 | 100/500/1000 |
| 3.602.3.2.2.1600.0.0009 | 9 | 16 | 33,7 | 1337,6 | 2019 | 100/500/1000 |
| 3.602.3.2.2.1600.0.0010 | 10 | 16 | 33,7 | 1477,8 | 2162 | 100/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 7.5xD mm | -30°C ~ +70°C |
