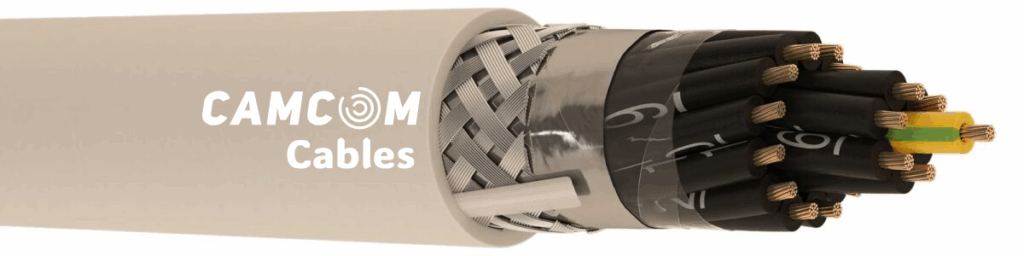

YSL(St)CY-JZ Control Cable

Product Code: YSL(St)CY-JZ

1 – Conductor	:	Stranded electrolytic annealed copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – Insulation	:	PVC (DIN VDE 0207, EN 50363-3, TS EN 50290-2-21 TI2), Black insulation, white number coded and a Y/G insulation (DIN VDE 0293, TS EN 50334)
3 – Stranding	:	In layers
4 – Inner Jacket	:	UV resistant PVC inner jacket (EN 50363-4-1, DIN VDE 207 TM2). RAL 7001 (Grey)
5 – Screen	:	Al/PET tape, tinned copper braiding
6 – Outer Jacket	:	UV resistant PVC outer jacket (EN 50363-4-1, DIN VDE 207 TM2). RAL 7001 (Grey) or Transparent

Cross Section	Conductor Resistance Ω/km (20 °C)	Insulation Resistance (@500V DC) MΩ/km	Operating Voltage V DC	Test Voltage (@ 1 minute) V DC
0.50 mm²	39.0	20	300/500	2000
0.75 mm²	26.0	20	300/500	2000
1.00 mm²	19.5	20	300/500	2000
1.50 mm²	13.3	20	300/500	2000
2.50 mm²	7.98	20	300/500	2000
4.00 mm²	4.95	20	300/500	2000
6.00 mm²	3.30	20	300/500	2000
10.00 mm²	1.91	20	300/500	2000
16.00 mm²	1.21	20	300/500	2000

Flame Retardancy Test
IEC 60332-1-2, VDE 0482-332-1-2, BS EN 60332-1-2

Bending Radius	Temperature Range Operating
7.5xD mm	-30°C ~ +70°C
