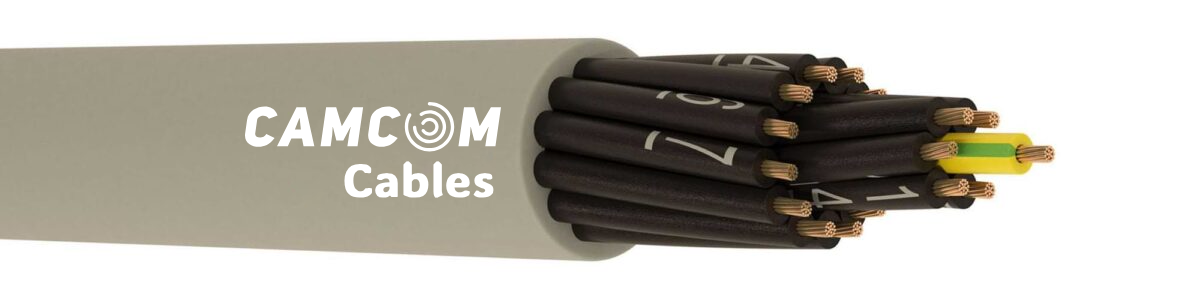

YSLY-JZ 0.45/0.75kV Control Cable
Product Code: NYSLY-JZ
1 – Conductor : Stranded electrolytic annealed copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – Insulation : PVC (DIN VDE 0207, EN 50363-3, TS EN 50290-2-21 TI2), Black insulation, white number coded (DIN VDE 0293, TS EN 50334)
3 – Stranding : In layers
4 – Outer Jacket: UV resistant PVC outer jacket (EN 50363-4-1, DIN VDE 207 TM2). RAL 7001 (Grey)
| Cross Section |
Conductor Resistance Ω/km (20 °C) |
Insulation Resistance MΩ/km |
Current Carrying Capacity A |
Test Voltage V (DC, 1 minute) |
Operating Voltage V DC |
|---|---|---|---|---|---|
| 0.50 mm² | 39.0 | 20 | 9 | 2500 | 450/750 |
| 0.75 mm² | 26.0 | 20 | 12 | 2500 | 450/750 |
| 1.00 mm² | 19.5 | 20 | 15 | 2500 | 450/750 |
| 1.5 mm² | 13.3 | 20 | 18 | 2500 | 450/750 |
| 2.5 mm² | 7.98 | 20 | 26 | 2500 | 450/750 |
| 4.0 mm² | 4.95 | 20 | 34 | 2500 | 450/750 |
| 6.0 mm² | 3.30 | 20 | 44 | 2500 | 450/750 |
| 10.0 mm² | 1.91 | 20 | 61 | 2500 | 450/750 |
| 16.0 mm² | 1.21 | 20 | 82 | 2500 | 450/750 |
| Flame Retardancy Test |
|---|
| IEC 60332-1-2 EN 60332-1-2 VDE 0482-332-1-2 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.610.2.2.2.0050.1.0002 | 2 | 0,5 | 6,2 | 8,8 | 50 | 100/500/1000 |
| 3.610.3.2.2.0050.0.0003 | 3 | 0,5 | 6,6 | 13,2 | 61 | 100/500/1000 |
| 3.610.3.2.2.0050.0.0004 | 4 | 0,5 | 7,3 | 17,6 | 75 | 100/500/1000 |
| 3.610.3.2.2.0050.0.0005 | 5 | 0,5 | 8,1 | 22 | 92 | 100/500/1000 |
| 3.610.3.2.2.0050.0.0006 | 6 | 0,5 | 8,7 | 26,4 | 110 | 100/500/1000 |
| 3.610.3.2.2.0050.0.0007 | 7 | 0,5 | 8,7 | 30,8 | 113 | 100/500/1000 |
| 3.610.3.2.2.0050.0.0008 | 8 | 0,5 | 9,6 | 35,2 | 135 | 100/500/1000 |
| 3.610.3.2.2.0050.0.0009 | 9 | 0,5 | 11,3 | 39,6 | 158 | 100/500/1000 |
| 3.610.3.2.2.0050.0.0010 | 10 | 0,5 | 11,3 | 44 | 162 | 100/500/1000 |
| 3.610.3.2.2.0050.0.0012 | 12 | 0,5 | 11,7 | 52,8 | 183 | 100/500/1000 |
| 3.610.3.2.2.0050.0.0014 | 14 | 0,5 | 12,4 | 61,6 | 209 | 100/500/1000 |
| 3.610.3.2.2.0050.0.0016 | 16 | 0,5 | 13,1 | 70,4 | 232 | 100/500/1000 |
| 3.610.3.2.2.0050.0.0018 | 18 | 0,5 | 13,8 | 79,2 | 265 | 100/500/1000 |
| 3.610.3.2.2.0050.0.0020 | 20 | 0,5 | 14,7 | 88 | 286 | 100/500/1000 |
| 3.610.3.2.2.0050.0.0024 | 24 | 0,5 | 16,3 | 105,6 | 339 | 100/500/1000 |
| 3.610.3.2.2.0050.0.0025 | 25 | 0,5 | 16,3 | 110 | 361 | 100/500/1000 |
| 3.610.3.2.2.0050.0.0027 | 27 | 0,5 | 16,9 | 118,8 | 378 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.610.2.2.2.0075.1.0002 | 2 | 0,75 | 6,5 | 13,2 | 57 | 100/500/1000 |
| 3.610.3.2.2.0075.0.0003 | 3 | 0,75 | 7 | 19,8 | 73 | 100/500/1000 |
| 3.610.3.2.2.0075.0.0004 | 4 | 0,75 | 7,7 | 26,4 | 88 | 100/500/1000 |
| 3.610.3.2.2.0075.0.0005 | 5 | 0,75 | 8,5 | 33 | 113 | 100/500/1000 |
| 3.610.3.2.2.0075.0.0006 | 6 | 0,75 | 9,3 | 39,6 | 131 | 100/500/1000 |
| 3.610.3.2.2.0075.0.0007 | 7 | 0,75 | 9,3 | 46,2 | 136 | 100/500/1000 |
| 3.610.3.2.2.0075.0.0008 | 8 | 0,75 | 10,2 | 52,8 | 161 | 100/500/1000 |
| 3.610.3.2.2.0075.0.0009 | 9 | 0,75 | 11,9 | 59,4 | 186 | 100/500/1000 |
| 3.610.3.2.2.0075.0.0010 | 10 | 0,75 | 11,9 | 66 | 191 | 100/500/1000 |
| 3.610.3.2.2.0075.0.0012 | 12 | 0,75 | 12,4 | 79,2 | 220 | 100/500/1000 |
| 3.610.3.2.2.0075.0.0014 | 14 | 0,75 | 13,1 | 92,4 | 248 | 100/500/1000 |
| 3.610.3.2.2.0075.0.0016 | 16 | 0,75 | 13,9 | 105,6 | 280 | 100/500/1000 |
| 3.610.3.2.2.0075.0.0018 | 18 | 0,75 | 14,7 | 118,8 | 320 | 100/500/1000 |
| 3.610.3.2.2.0075.0.0020 | 20 | 0,75 | 15,6 | 132 | 346 | 100/500/1000 |
| 3.610.3.2.2.0075.0.0024 | 24 | 0,75 | 17,4 | 158,5 | 414 | 100/500/1000 |
| 3.610.3.2.2.0075.0.0025 | 25 | 0,75 | 17,4 | 165,1 | 441 | 100/500/1000 |
| 3.610.3.2.2.0075.0.0027 | 27 | 0,75 | 18 | 178,3 | 462 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.610.2.2.2.0100.1.0002 | 2 | 1 | 7 | 16,5 | 67 | 100/500/1000 |
| 3.610.3.2.2.0100.0.0003 | 3 | 1 | 7,5 | 24,8 | 83 | 100/500/1000 |
| 3.610.3.2.2.0100.0.0004 | 4 | 1 | 8,2 | 33 | 103 | 100/500/1000 |
| 3.610.3.2.2.0100.0.0005 | 5 | 1 | 9,1 | 41,3 | 132 | 100/500/1000 |
| 3.610.3.2.2.0100.0.0006 | 6 | 1 | 9,9 | 49,5 | 151 | 100/500/1000 |
| 3.610.3.2.2.0100.0.0007 | 7 | 1 | 9,9 | 57,8 | 157 | 100/500/1000 |
| 3.610.3.2.2.0100.0.0008 | 8 | 1 | 10,8 | 66 | 187 | 100/500/1000 |
| 3.610.3.2.2.0100.0.0009 | 9 | 1 | 12,8 | 74,3 | 218 | 100/500/1000 |
| 3.610.3.2.2.0100.0.0010 | 10 | 1 | 12,8 | 82,5 | 224 | 100/500/1000 |
| 3.610.3.2.2.0100.0.0012 | 12 | 1 | 13,4 | 99 | 259 | 100/500/1000 |
| 3.610.3.2.2.0100.0.0014 | 14 | 1 | 14 | 115,5 | 292 | 100/500/1000 |
| 3.610.3.2.2.0100.0.0016 | 16 | 1 | 14,9 | 132 | 330 | 100/500/1000 |
| 3.610.3.2.2.0100.0.0018 | 18 | 1 | 15,8 | 148,5 | 377 | 100/500/1000 |
| 3.610.3.2.2.0100.0.0020 | 20 | 1 | 16,9 | 165,1 | 411 | 100/500/1000 |
| 3.610.3.2.2.0100.0.0024 | 24 | 1 | 18,8 | 198,1 | 492 | 100/500/1000 |
| 3.610.3.2.2.0100.0.0025 | 25 | 1 | 18,8 | 206,3 | 523 | 100/500/1000 |
| 3.610.3.2.2.0100.0.0027 | 27 | 1 | 19,4 | 222,8 | 548 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.610.2.2.2.0150.1.0002 | 2 | 1,5 | 7,4 | 25,7 | 80 | 100/500/1000 |
| 3.610.3.2.2.0150.0.0003 | 3 | 1,5 | 8 | 38,6 | 103 | 100/500/1000 |
| 3.610.3.2.2.0150.0.0004 | 4 | 1,5 | 8,7 | 51,4 | 126 | 100/500/1000 |
| 3.610.3.2.2.0150.0.0005 | 5 | 1,5 | 9,6 | 64,3 | 161 | 100/500/1000 |
| 3.610.3.2.2.0150.0.0006 | 6 | 1,5 | 10,6 | 77,2 | 188 | 100/500/1000 |
| 3.610.3.2.2.0150.0.0007 | 7 | 1,5 | 10,6 | 90 | 197 | 100/500/1000 |
| 3.610.3.2.2.0150.0.0008 | 8 | 1,5 | 11,6 | 102,9 | 234 | 100/500/1000 |
| 3.610.3.2.2.0150.0.0009 | 9 | 1,5 | 13,7 | 115,7 | 271 | 100/500/1000 |
| 3.610.3.2.2.0150.0.0010 | 10 | 1,5 | 13,7 | 128,6 | 281 | 100/500/1000 |
| 3.610.3.2.2.0150.0.0012 | 12 | 1,5 | 14,2 | 154,3 | 322 | 100/500/1000 |
| 3.610.3.2.2.0150.0.0014 | 14 | 1,5 | 15 | 180 | 369 | 100/500/1000 |
| 3.610.3.2.2.0150.0.0016 | 16 | 1,5 | 15,9 | 205,7 | 417 | 100/500/1000 |
| 3.610.3.2.2.0150.0.0018 | 18 | 1,5 | 17 | 231,5 | 479 | 100/500/1000 |
| 3.610.3.2.2.0150.0.0020 | 20 | 1,5 | 18,1 | 257,2 | 524 | 100/500/1000 |
| 3.610.3.2.2.0150.0.0024 | 24 | 1,5 | 20,4 | 308,6 | 635 | 100/500/1000 |
| 3.610.3.2.2.0150.0.0025 | 25 | 1,5 | 20,4 | 321,5 | 674 | 100/500/1000 |
| 3.610.3.2.2.0150.0.0027 | 27 | 1,5 | 20,9 | 347,2 | 697 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.610.2.2.2.0250.1.0002 | 2 | 2,5 | 9 | 42,9 | 120 | 100/500/1000 |
| 3.610.3.2.2.0250.0.0003 | 3 | 2,5 | 9,6 | 64,3 | 154 | 100/500/1000 |
| 3.610.3.2.2.0250.0.0004 | 4 | 2,5 | 10,6 | 85,7 | 192 | 100/500/1000 |
| 3.610.3.2.2.0250.0.0005 | 5 | 2,5 | 11,7 | 107,2 | 247 | 100/500/1000 |
| 3.610.3.2.2.0250.0.0006 | 6 | 2,5 | 12,9 | 128,6 | 287 | 100/500/1000 |
| 3.610.3.2.2.0250.0.0007 | 7 | 2,5 | 12,9 | 150 | 303 | 100/500/1000 |
| 3.610.3.2.2.0250.0.0008 | 8 | 2,5 | 14,1 | 171,5 | 359 | 100/500/1000 |
| 3.610.3.2.2.0250.0.0009 | 9 | 2,5 | 16,9 | 192,9 | 422 | 100/500/1000 |
| 3.610.3.2.2.0250.0.0010 | 10 | 2,5 | 16,9 | 214,3 | 438 | 100/500/1000 |
| 3.610.3.2.2.0250.0.0012 | 12 | 2,5 | 17,5 | 257,2 | 504 | 100/500/1000 |
| 3.610.3.2.2.0250.0.0014 | 14 | 2,5 | 18,6 | 300 | 581 | 100/500/1000 |
| 3.610.3.2.2.0250.0.0016 | 16 | 2,5 | 19,8 | 342,9 | 661 | 100/500/1000 |
| 3.610.3.2.2.0250.0.0018 | 18 | 2,5 | 21,1 | 385,8 | 757 | 100/500/1000 |
| 3.610.3.2.2.0250.0.0020 | 20 | 2,5 | 22,5 | 428,6 | 825 | 100/500/1000 |
| 3.610.3.2.2.0250.0.0024 | 24 | 2,5 | 25,4 | 514,4 | 1008 | 100/500/1000 |
| 3.610.3.2.2.0250.0.0025 | 25 | 2,5 | 25,4 | 535,8 | 1070 | 100/500/1000 |
| 3.610.3.2.2.0250.0.0027 | 27 | 2,5 | 26 | 578,7 | 1107 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.610.3.2.2.0400.1.0002 | 2 | 4 | 10,4 | 68,6 | 166 | 100/500/1000 |
| 3.610.3.2.2.0400.0.0003 | 3 | 4 | 11,2 | 102,9 | 219 | 100/500/1000 |
| 3.610.3.2.2.0400.0.0004 | 4 | 4 | 12,4 | 137,2 | 275 | 100/500/1000 |
| 3.610.3.2.2.0400.0.0005 | 5 | 4 | 13,7 | 171,5 | 353 | 100/500/1000 |
| 3.610.3.2.2.0400.0.0006 | 6 | 4 | 15 | 205,7 | 412 | 100/500/1000 |
| 3.610.3.2.2.0400.0.0007 | 7 | 4 | 15 | 240 | 437 | 100/500/1000 |
| 3.610.3.2.2.0400.0.0008 | 8 | 4 | 16,5 | 274,3 | 517 | 100/500/1000 |
| 3.610.3.2.2.0400.0.0009 | 9 | 4 | 19,9 | 308,6 | 612 | 100/500/1000 |
| 3.610.3.2.2.0400.0.0010 | 10 | 4 | 19,9 | 342,9 | 637 | 100/500/1000 |
| 3.610.3.2.2.0400.0.0012 | 12 | 4 | 20,8 | 411,5 | 746 | 100/500/1000 |
| 3.610.3.2.2.0400.0.0014 | 14 | 4 | 22,1 | 480,1 | 859 | 100/500/1000 |
| 3.610.3.2.2.0400.0.0016 | 16 | 4 | 23,5 | 548,7 | 975 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.610.3.2.2.0600.1.0002 | 2 | 6 | 12,2 | 102,9 | 233 | 100/500/1000 |
| 3.610.3.2.2.0600.0.0003 | 3 | 6 | 13 | 154,3 | 306 | 100/500/1000 |
| 3.610.3.2.2.0600.0.0004 | 4 | 6 | 14,5 | 205,7 | 389 | 100/500/1000 |
| 3.610.3.2.2.0600.0.0005 | 5 | 6 | 16 | 257,2 | 500 | 100/500/1000 |
| 3.610.3.2.2.0600.0.0006 | 6 | 6 | 17,9 | 308,6 | 596 | 100/500/1000 |
| 3.610.3.2.2.0600.0.0007 | 7 | 6 | 17,9 | 360,1 | 634 | 100/500/1000 |
| 3.610.3.2.2.0600.0.0008 | 8 | 6 | 19,7 | 411,5 | 753 | 100/500/1000 |
| 3.610.3.2.2.0600.0.0009 | 9 | 6 | 23,9 | 462,9 | 896 | 100/500/1000 |
| 3.610.3.2.2.0600.0.0010 | 10 | 6 | 23,9 | 514,4 | 934 | 100/500/1000 |
| 3.610.3.2.2.0600.0.0012 | 12 | 6 | 24,7 | 617,2 | 1078 | 100/500/1000 |
| 3.610.3.2.2.0600.0.0014 | 14 | 6 | 26,4 | 720,1 | 1253 | 100/500/1000 |
| 3.610.3.2.2.0600.0.0016 | 16 | 6 | 28 | 823 | 1419 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.610.3.2.2.1000.1.0002 | 2 | 10 | 14,8 | 178 | 359 | 100/500/1000 |
| 3.610.3.2.2.1000.0.0003 | 3 | 10 | 15,9 | 267 | 481 | 100/500/1000 |
| 3.610.3.2.2.1000.0.0004 | 4 | 10 | 17,7 | 356 | 612 | 100/500/1000 |
| 3.610.3.2.2.1000.0.0005 | 5 | 10 | 19,9 | 445 | 776 | 100/500/1000 |
| 3.610.3.2.2.1000.0.0006 | 6 | 10 | 22,1 | 534 | 925 | 100/500/1000 |
| 3.610.3.2.2.1000.0.0007 | 7 | 10 | 22,1 | 623 | 1017 | 100/500/1000 |
| 3.610.3.2.2.1000.0.0008 | 8 | 10 | 24,5 | 712 | 1190 | 100/500/1000 |
| 3.610.3.2.2.1000.0.0009 | 9 | 10 | 29,3 | 801 | 1389 | 100/500/1000 |
| 3.610.3.2.2.1000.0.0010 | 10 | 10 | 29,3 | 890 | 1481 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.610.3.2.2.1600.1.0002 | 2 | 16 | 17,5 | 280,4 | 523 | 100/500/1000 |
| 3.610.3.2.2.1600.0.0003 | 3 | 16 | 18,9 | 420,6 | 710 | 100/500/1000 |
| 3.610.3.2.2.1600.0.0004 | 4 | 16 | 21,2 | 560,9 | 914 | 100/500/1000 |
| 3.610.3.2.2.1600.0.0005 | 5 | 16 | 23,7 | 701,1 | 1157 | 100/500/1000 |
| 3.610.3.2.2.1600.0.0006 | 6 | 16 | 26,5 | 841,3 | 1374 | 100/500/1000 |
| 3.610.3.2.2.1600.0.0007 | 7 | 16 | 26,5 | 981,5 | 1523 | 100/500/1000 |
| 3.610.3.2.2.1600.0.0008 | 8 | 16 | 29 | 1121,7 | 1752 | 100/500/1000 |
| 3.610.3.2.2.1600.0.0009 | 9 | 16 | 34,1 | 1261,9 | 1981 | 100/500/1000 |
| 3.610.3.2.2.1600.0.0010 | 10 | 16 | 34,1 | 1402,1 | 2130 | 100/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 7.5xD mm | -30°C~+70°C |
