Management's Insight

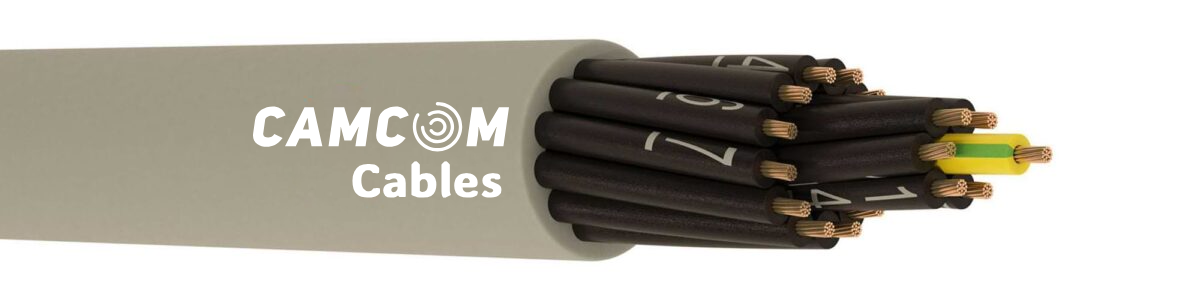

YSLY-JZ Control Cable
Product Code: YSLY-JZ
| 1 – Conductor | : | Stranded electrolytic annealed copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295) |
| 2 – Insulation | : | PVC (DIN VDE 0207, EN 50363-3, TS EN 50290-2-21 TI2), Black insulation, white number coded and a Y/G insulation (DIN VDE 0293, TS EN 50334) |
| 3 – Stranding | : | In layers |
| 4 – Outer Jacket | : | UV resistant PVC outer jacket (EN 50363-4-1, DIN VDE 207 TM2). RAL 7001 (Grey) |
| Cross Section | Conductor Resistance Ω/km (20 °C) |
Insulation Resistance (@500V DC) MΩ/km |
Operating Voltage
V DC |
Test Voltage
(@ 1 minute) |
|---|---|---|---|---|
| 0.50 mm² | 39.0 | 20 | 300/500 | 2000 |
| 0.75 mm² | 26.0 | 20 | 300/500 | 2000 |
| 1.00 mm² | 19.5 | 20 | 300/500 | 2000 |
| 1.50 mm² | 13.3 | 20 | 300/500 | 2000 |
| 2.50 mm² | 7.98 | 20 | 300/500 | 2000 |
| 4.00 mm² | 4.95 | 20 | 300/500 | 2000 |
| 6.00 mm² | 3.30 | 20 | 300/500 | 2000 |
| 10.00 mm² | 1.91 | 20 | 300/500 | 2000 |
| 16.00 mm² | 1.21 | 20 | 300/500 | 2000 |
| Flame Retardancy Test |
|---|
| IEC 60332-1-2, VDE 0482-332-1-2, BS EN 60332-1-2 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.600.2.2.2.0050.1.0002 | 2 | 0,5 | 5 | 8,8 | 36 | 100/500/1000 |
| 3.600.3.2.2.0050.0.0003 | 3 | 0,5 | 5,3 | 13,2 | 44 | 100/500/1000 |
| 3.600.3.2.2.0050.0.0004 | 4 | 0,5 | 5,7 | 17,6 | 52 | 100/500/1000 |
| 3.600.3.2.2.0050.0.0005 | 5 | 0,5 | 6,2 | 22 | 63 | 100/500/1000 |
| 3.600.3.2.2.0050.0.0006 | 6 | 0,5 | 6,8 | 26,4 | 76 | 100/500/1000 |
| 3.600.3.2.2.0050.0.0007 | 7 | 0,5 | 6,8 | 30,8 | 79 | 100/500/1000 |
| 3.600.3.2.2.0050.0.0008 | 8 | 0,5 | 7,4 | 35,2 | 92 | 100/500/1000 |
| 3.600.3.2.2.0050.0.0009 | 9 | 0,5 | 8,6 | 39,6 | 106 | 100/500/1000 |
| 3.600.3.2.2.0050.0.0010 | 10 | 0,5 | 8,6 | 44 | 109 | 100/500/1000 |
| 3.600.3.2.2.0050.0.0012 | 12 | 0,5 | 9 | 52,8 | 126 | 100/500/1000 |
| 3.600.3.2.2.0050.0.0014 | 14 | 0,5 | 9,4 | 61,6 | 142 | 100/500/1000 |
| 3.600.3.2.2.0050.0.0016 | 16 | 0,5 | 9,9 | 70,4 | 158 | 100/500/1000 |
| 3.600.3.2.2.0050.0.0018 | 18 | 0,5 | 10,5 | 79,2 | 180 | 100/500/1000 |
| 3.600.3.2.2.0050.0.0020 | 20 | 0,5 | 11,2 | 88 | 202 | 100/500/1000 |
| 3.600.3.2.2.0050.0.0024 | 24 | 0,5 | 12,4 | 105,6 | 233 | 100/500/1000 |
| 3.600.3.2.2.0050.0.0025 | 25 | 0,5 | 12,4 | 110 | 246 | 100/500/1000 |
| 3.600.3.2.2.0050.0.0027 | 27 | 0,5 | 12,7 | 118,8 | 254 | 100/500/1000 |
| 3.600.3.2.2.0050.0.0030 | 30 | 0,5 | 13,1 | 132 | 277 | 100/500/1000 |
| 3.600.3.2.2.0050.0.0032 | 32 | 0,5 | 13,7 | 140,8 | 301 | 100/500/1000 |
| 3.600.3.2.2.0050.0.0036 | 36 | 0,5 | 14,2 | 158,5 | 331 | 100/500/1000 |
| 3.600.3.2.2.0050.0.0040 | 40 | 0,5 | 14,9 | 176,1 | 375 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.600.2.2.2.0075.1.0002 | 2 | 0,75 | 5,4 | 13,2 | 43 | 100/500/1000 |
| 3.600.3.2.2.0075.0.0003 | 3 | 0,75 | 5,8 | 19,8 | 54 | 100/500/1000 |
| 3.600.3.2.2.0075.0.0004 | 4 | 0,75 | 6,2 | 26,4 | 65 | 100/500/1000 |
| 3.600.3.2.2.0075.0.0005 | 5 | 0,75 | 6,9 | 33 | 81 | 100/500/1000 |
| 3.600.3.2.2.0075.0.0006 | 6 | 0,75 | 7,4 | 39,6 | 95 | 100/500/1000 |
| 3.600.3.2.2.0075.0.0007 | 7 | 0,75 | 7,4 | 46,2 | 100 | 100/500/1000 |
| 3.600.3.2.2.0075.0.0008 | 8 | 0,75 | 8,1 | 52,8 | 118 | 100/500/1000 |
| 3.600.3.2.2.0075.0.0009 | 9 | 0,75 | 9,5 | 59,4 | 137 | 100/500/1000 |
| 3.600.3.2.2.0075.0.0010 | 10 | 0,75 | 9,5 | 66 | 141 | 100/500/1000 |
| 3.600.3.2.2.0075.0.0012 | 12 | 0,75 | 9,9 | 79,2 | 161 | 100/500/1000 |
| 3.600.3.2.2.0075.0.0014 | 14 | 0,75 | 10,4 | 92,4 | 185 | 100/500/1000 |
| 3.600.3.2.2.0075.0.0016 | 16 | 0,75 | 11 | 105,6 | 206 | 100/500/1000 |
| 3.600.3.2.2.0075.0.0018 | 18 | 0,75 | 11,6 | 118,8 | 235 | 100/500/1000 |
| 3.600.3.2.2.0075.0.0020 | 20 | 0,75 | 12,4 | 132 | 263 | 100/500/1000 |
| 3.600.3.2.2.0075.0.0024 | 24 | 0,75 | 13,7 | 158,5 | 304 | 100/500/1000 |
| 3.600.3.2.2.0075.0.0025 | 25 | 0,75 | 13,7 | 165,1 | 322 | 100/500/1000 |
| 3.600.3.2.2.0075.0.0027 | 27 | 0,75 | 14 | 178,3 | 333 | 100/500/1000 |
| 3.600.3.2.2.0075.0.0030 | 30 | 0,75 | 14,6 | 198,1 | 368 | 100/500/1000 |
| 3.600.3.2.2.0075.0.0032 | 32 | 0,75 | 15,2 | 211,3 | 394 | 100/500/1000 |
| 3.600.3.2.2.0075.0.0036 | 36 | 0,75 | 15,8 | 237,7 | 438 | 100/500/1000 |
| 3.600.3.2.2.0075.0.0040 | 40 | 0,75 | 16,5 | 264,1 | 493 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.600.2.2.2.0100.1.0002 | 2 | 1 | 5,8 | 16,5 | 51 | 100/500/1000 |
| 3.600.3.2.2.0100.0.0003 | 3 | 1 | 6,2 | 24,8 | 64 | 100/500/1000 |
| 3.600.3.2.2.0100.0.0004 | 4 | 1 | 6,8 | 33 | 79 | 100/500/1000 |
| 3.600.3.2.2.0100.0.0005 | 5 | 1 | 7,4 | 41,3 | 96 | 100/500/1000 |
| 3.600.3.2.2.0100.0.0006 | 6 | 1 | 8,1 | 49,5 | 115 | 100/500/1000 |
| 3.600.3.2.2.0100.0.0007 | 7 | 1 | 8,1 | 57,8 | 121 | 100/500/1000 |
| 3.600.3.2.2.0100.0.0008 | 8 | 1 | 8,8 | 66 | 141 | 100/500/1000 |
| 3.600.3.2.2.0100.0.0009 | 9 | 1 | 10,4 | 74,3 | 165 | 100/500/1000 |
| 3.600.3.2.2.0100.0.0010 | 10 | 1 | 10,4 | 82,5 | 171 | 100/500/1000 |
| 3.600.3.2.2.0100.0.0012 | 12 | 1 | 10,8 | 99 | 196 | 100/500/1000 |
| 3.600.3.2.2.0100.0.0014 | 14 | 1 | 11,4 | 115,5 | 224 | 100/500/1000 |
| 3.600.3.2.2.0100.0.0016 | 16 | 1 | 12 | 132 | 250 | 100/500/1000 |
| 3.600.3.2.2.0100.0.0018 | 18 | 1 | 12,7 | 148,5 | 285 | 100/500/1000 |
| 3.600.3.2.2.0100.0.0020 | 20 | 1 | 13,5 | 165,1 | 319 | 100/500/1000 |
| 3.600.3.2.2.0100.0.0024 | 24 | 1 | 15 | 198,1 | 368 | 100/500/1000 |
| 3.600.3.2.2.0100.0.0025 | 25 | 1 | 15 | 206,3 | 390 | 100/500/1000 |
| 3.600.3.2.2.0100.0.0027 | 27 | 1 | 15,4 | 222,8 | 405 | 100/500/1000 |
| 3.600.3.2.2.0100.0.0030 | 30 | 1 | 16 | 247,6 | 446 | 100/500/1000 |
| 3.600.3.2.2.0100.0.0032 | 32 | 1 | 16,8 | 264,1 | 487 | 100/500/1000 |
| 3.600.3.2.2.0100.0.0036 | 36 | 1 | 17,4 | 297,1 | 537 | 100/500/1000 |
| 3.600.3.2.2.0100.0.0040 | 40 | 1 | 18,3 | 330,1 | 612 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.600.2.2.2.0150.1.0002 | 2 | 1,5 | 6,4 | 25,7 | 65 | 100/500/1000 |
| 3.600.3.2.2.0150.0.0003 | 3 | 1,5 | 6,8 | 38,6 | 83 | 100/500/1000 |
| 3.600.3.2.2.0150.0.0004 | 4 | 1,5 | 7,5 | 51,4 | 104 | 100/500/1000 |
| 3.600.3.2.2.0150.0.0005 | 5 | 1,5 | 8,3 | 64,3 | 129 | 100/500/1000 |
| 3.600.3.2.2.0150.0.0006 | 6 | 1,5 | 9 | 77,2 | 152 | 100/500/1000 |
| 3.600.3.2.2.0150.0.0007 | 7 | 1,5 | 9 | 90 | 162 | 100/500/1000 |
| 3.600.3.2.2.0150.0.0008 | 8 | 1,5 | 9,9 | 102,9 | 191 | 100/500/1000 |
| 3.600.3.2.2.0150.0.0009 | 9 | 1,5 | 11,7 | 115,7 | 222 | 100/500/1000 |
| 3.600.3.2.2.0150.0.0010 | 10 | 1,5 | 11,7 | 128,6 | 232 | 100/500/1000 |
| 3.600.3.2.2.0150.0.0012 | 12 | 1,5 | 12,1 | 154,3 | 267 | 100/500/1000 |
| 3.600.3.2.2.0150.0.0014 | 14 | 1,5 | 12,8 | 180 | 307 | 100/500/1000 |
| 3.600.3.2.2.0150.0.0016 | 16 | 1,5 | 13,5 | 205,7 | 344 | 100/500/1000 |
| 3.600.3.2.2.0150.0.0018 | 18 | 1,5 | 14,3 | 231,5 | 391 | 100/500/1000 |
| 3.600.3.2.2.0150.0.0020 | 20 | 1,5 | 15,2 | 257,2 | 438 | 100/500/1000 |
| 3.600.3.2.2.0150.0.0024 | 24 | 1,5 | 16,9 | 308,6 | 506 | 100/500/1000 |
| 3.600.3.2.2.0150.0.0025 | 25 | 1,5 | 16,9 | 321,5 | 535 | 100/500/1000 |
| 3.600.3.2.2.0150.0.0027 | 27 | 1,5 | 17,5 | 347,2 | 566 | 100/500/1000 |
| 3.600.3.2.2.0150.0.0030 | 30 | 1,5 | 18,1 | 385,8 | 620 | 100/500/1000 |
| 3.600.3.2.2.0150.0.0032 | 32 | 1,5 | 19 | 411,5 | 674 | 100/500/1000 |
| 3.600.3.2.2.0150.0.0036 | 36 | 1,5 | 19,9 | 462,9 | 755 | 100/500/1000 |
| 3.600.3.2.2.0150.0.0040 | 40 | 1,5 | 20,7 | 514,4 | 846 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.600.2.2.2.0250.1.0002 | 2 | 2,5 | 7,8 | 42,9 | 99 | 100/500/1000 |
| 3.600.3.2.2.0250.0.0003 | 3 | 2,5 | 8,3 | 64,3 | 128 | 100/500/1000 |
| 3.600.3.2.2.0250.0.0004 | 4 | 2,5 | 9,2 | 85,7 | 160 | 100/500/1000 |
| 3.600.3.2.2.0250.0.0005 | 5 | 2,5 | 10,1 | 107,2 | 199 | 100/500/1000 |
| 3.600.3.2.2.0250.0.0006 | 6 | 2,5 | 11,1 | 128,6 | 239 | 100/500/1000 |
| 3.600.3.2.2.0250.0.0007 | 7 | 2,5 | 11,1 | 150 | 255 | 100/500/1000 |
| 3.600.3.2.2.0250.0.0008 | 8 | 2,5 | 12,1 | 171,5 | 298 | 100/500/1000 |
| 3.600.3.2.2.0250.0.0009 | 9 | 2,5 | 14,4 | 192,9 | 347 | 100/500/1000 |
| 3.600.3.2.2.0250.0.0010 | 10 | 2,5 | 14,4 | 214,3 | 363 | 100/500/1000 |
| 3.600.3.2.2.0250.0.0012 | 12 | 2,5 | 14,9 | 257,2 | 419 | 100/500/1000 |
| 3.600.3.2.2.0250.0.0014 | 14 | 2,5 | 15,8 | 300 | 481 | 100/500/1000 |
| 3.600.3.2.2.0250.0.0016 | 16 | 2,5 | 16,8 | 342,9 | 548 | 100/500/1000 |
| 3.600.3.2.2.0250.0.0018 | 18 | 2,5 | 17,9 | 385,8 | 628 | 100/500/1000 |
| 3.600.3.2.2.0250.0.0020 | 20 | 2,5 | 18,9 | 428,6 | 696 | 100/500/1000 |
| 3.600.3.2.2.0250.0.0024 | 24 | 2,5 | 21,5 | 514,4 | 831 | 100/500/1000 |
| 3.600.3.2.2.0250.0.0025 | 25 | 2,5 | 21,5 | 535,8 | 880 | 100/500/1000 |
| 3.600.3.2.2.0250.0.0027 | 27 | 2,5 | 22 | 578,7 | 915 | 100/500/1000 |
| 3.600.3.2.2.0250.0.0030 | 30 | 2,5 | 23 | 643 | 1014 | 100/500/1000 |
| 3.600.3.2.2.0250.0.0032 | 32 | 2,5 | 24 | 685,8 | 1098 | 100/500/1000 |
| 3.600.3.2.2.0250.0.0036 | 36 | 2,5 | 25,1 | 771,6 | 1226 | 100/500/1000 |
| 3.600.3.2.2.0250.0.0040 | 40 | 2,5 | 26,1 | 857,3 | 1376 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.600.2.2.2.0400.1.0002 | 2 | 4 | 8,9 | 68,6 | 146 | 100/500/1000 |
| 3.600.3.2.2.0400.0.0003 | 3 | 4 | 9,5 | 102,9 | 180 | 100/500/1000 |
| 3.600.3.2.2.0400.0.0004 | 4 | 4 | 10,5 | 137,2 | 227 | 100/500/1000 |
| 3.600.3.2.2.0400.0.0005 | 5 | 4 | 11,6 | 171,5 | 283 | 100/500/1000 |
| 3.600.3.2.2.0400.0.0006 | 6 | 4 | 12,7 | 205,7 | 339 | 100/500/1000 |
| 3.600.3.2.2.0400.0.0007 | 7 | 4 | 12,7 | 240 | 364 | 100/500/1000 |
| 3.600.3.2.2.0400.0.0008 | 8 | 4 | 13,9 | 274,3 | 429 | 100/500/1000 |
| 3.600.3.2.2.0400.0.0009 | 9 | 4 | 16,7 | 308,6 | 501 | 100/500/1000 |
| 3.600.3.2.2.0400.0.0010 | 10 | 4 | 16,7 | 342,9 | 526 | 100/500/1000 |
| 3.600.3.2.2.0400.0.0012 | 12 | 4 | 17,3 | 411,5 | 610 | 100/500/1000 |
| 3.600.3.2.2.0400.0.0014 | 14 | 4 | 18,4 | 480,1 | 705 | 100/500/1000 |
| 3.600.3.2.2.0400.0.0016 | 16 | 4 | 19,6 | 548,7 | 803 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.600.2.2.2.0600.1.0002 | 2 | 6 | 10,6 | 102,9 | 211 | 100/500/1000 |
| 3.600.3.2.2.0600.0.0003 | 3 | 6 | 11,4 | 154,3 | 262 | 100/500/1000 |
| 3.600.3.2.2.0600.0.0004 | 4 | 6 | 12,6 | 205,7 | 332 | 100/500/1000 |
| 3.600.3.2.2.0600.0.0005 | 5 | 6 | 14 | 257,2 | 415 | 100/500/1000 |
| 3.600.3.2.2.0600.0.0006 | 6 | 6 | 15,3 | 308,6 | 497 | 100/500/1000 |
| 3.600.3.2.2.0600.0.0007 | 7 | 6 | 15,3 | 360,1 | 535 | 100/500/1000 |
| 3.600.3.2.2.0600.0.0008 | 8 | 6 | 17 | 411,5 | 639 | 100/500/1000 |
| 3.600.3.2.2.0600.0.0009 | 9 | 6 | 20,5 | 462,9 | 750 | 100/500/1000 |
| 3.600.3.2.2.0600.0.0010 | 10 | 6 | 20,5 | 514,4 | 788 | 100/500/1000 |
| 3.600.3.2.2.0600.0.0012 | 12 | 6 | 21,2 | 617,2 | 914 | 100/500/1000 |
| 3.600.3.2.2.0600.0.0014 | 14 | 6 | 22,5 | 720,1 | 1055 | 100/500/1000 |
| 3.600.3.2.2.0600.0.0016 | 16 | 6 | 24,2 | 823 | 1210 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.600.3.2.2.1000.1.0002 | 2 | 10 | 12,8 | 178 | 303 | 100/500/1000 |
| 3.600.3.2.2.1000.0.0003 | 3 | 10 | 13,8 | 267 | 411 | 100/500/1000 |
| 3.600.3.2.2.1000.0.0004 | 4 | 10 | 15,2 | 356 | 522 | 100/500/1000 |
| 3.600.3.2.2.1000.0.0005 | 5 | 10 | 17,1 | 445 | 662 | 100/500/1000 |
| 3.600.3.2.2.1000.0.0006 | 6 | 10 | 18,8 | 534 | 798 | 100/500/1000 |
| 3.600.3.2.2.1000.0.0007 | 7 | 10 | 18,8 | 623 | 864 | 100/500/1000 |
| 3.600.3.2.2.1000.0.0008 | 8 | 10 | 20,9 | 712 | 1030 | 100/500/1000 |
| 3.600.3.2.2.1000.0.0009 | 9 | 10 | 25,3 | 801 | 1210 | 100/500/1000 |
| 3.600.3.2.2.1000.0.0010 | 10 | 10 | 25,3 | 890 | 1276 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.600.3.2.2.1600.1.0002 | 2 | 16 | 17,1 | 280,4 | 509 | 100/500/1000 |
| 3.600.3.2.2.1600.0.0003 | 3 | 16 | 18,5 | 420,6 | 692 | 100/500/1000 |
| 3.600.3.2.2.1600.0.0004 | 4 | 16 | 20,7 | 560,9 | 892 | 100/500/1000 |
| 3.600.3.2.2.1600.0.0005 | 5 | 16 | 23,2 | 701,1 | 1130 | 100/500/1000 |
| 3.600.3.2.2.1600.0.0006 | 6 | 16 | 25,7 | 841,3 | 1373 | 100/500/1000 |
| 3.600.3.2.2.1600.0.0007 | 7 | 16 | 25,7 | 981,5 | 1476 | 100/500/1000 |
| 3.600.3.2.2.1600.0.0008 | 8 | 16 | 28,4 | 1121,7 | 1755 | 100/500/1000 |
| 3.600.3.2.2.1600.0.0009 | 9 | 16 | 33,3 | 1261,9 | 1979 | 100/500/1000 |
| 3.600.3.2.2.1600.0.0010 | 10 | 16 | 33,3 | 1402,1 | 2082 | 100/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 7.5xD mm | -30°C ~ +70°C |
