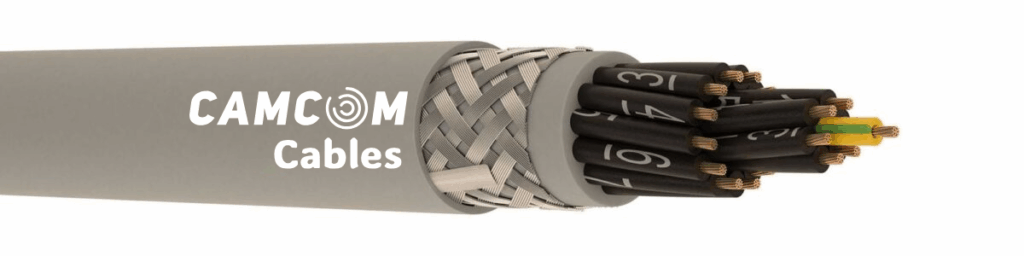

YSLYCY-JZ 0.45/0.75kV Control Cable
Product Code: NYSLYCY-JZ
1 – Conductor : Stranded electrolytic annealed copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – Insulation : PVC (DIN VDE 0207, EN 50363-3, TS EN 50290-2-21 TI2), Black insulation, white number coded (DIN VDE 0293, TS EN 50334)
3 – Stranding : In layers
4 – Inner Jacket : UV resistant PVC inner jacket (EN 50363-4-1, DIN VDE 207 TM2). RAL 7001 (Grey)
5 – Screen : Tinned copper braiding
6 – Outer Jacket : UV resistant PVC outer jacket (EN 50363-4-1, DIN VDE 207 TM2). RAL 7001 (Grey) or Transparent
| Cross Section |
Conductor Resistance Ω/km (20 °C) |
Insulation Resistance MΩ/km |
Current Carrying Capacity A |
Test Voltage V (DC, 1 minute) |
Operating Voltage V DC |
|---|---|---|---|---|---|
| 0.50 mm² | 39.0 | 20 | 9 | 2500 | 450/750 |
| 0.75 mm² | 26.0 | 20 | 12 | 2500 | 450/750 |
| 1.00 mm² | 19.5 | 20 | 15 | 2500 | 450/750 |
| 1.5 mm² | 13.3 | 20 | 18 | 2500 | 450/750 |
| 2.5 mm² | 7.98 | 20 | 26 | 2500 | 450/750 |
| 4.0 mm² | 4.95 | 20 | 34 | 2500 | 450/750 |
| 6.0 mm² | 3.30 | 20 | 44 | 2500 | 450/750 |
| 10.0 mm² | 1.91 | 20 | 61 | 2500 | 450/750 |
| 16.0 mm² | 1.21 | 20 | 82 | 2500 | 450/750 |
| Flame Retardancy Test |
|---|
| IEC 60332-1-2 EN 60332-1-2 VDE 0482-332-1-2 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.612.3.2.2.0050.1.0002 | 2 | 0,5 | 7,9 | 30,5 | 95 | 100/500/1000 |
| 3.612.3.2.2.0050.0.0003 | 3 | 0,5 | 8,3 | 36,5 | 109 | 100/500/1000 |
| 3.612.3.2.2.0050.0.0004 | 4 | 0,5 | 9,1 | 46,5 | 133 | 100/500/1000 |
| 3.612.3.2.2.0050.0.0005 | 5 | 0,5 | 9,9 | 53,7 | 156 | 100/500/1000 |
| 3.612.3.2.2.0050.0.0006 | 6 | 0,5 | 10,6 | 54,7 | 170 | 100/500/1000 |
| 3.612.3.2.2.0050.0.0007 | 7 | 0,5 | 10,6 | 59,1 | 178 | 100/500/1000 |
| 3.612.3.2.2.0050.0.0008 | 8 | 0,5 | 11,5 | 67,9 | 210 | 100/500/1000 |
| 3.612.3.2.2.0050.0.0009 | 9 | 0,5 | 13,3 | 85,8 | 254 | 100/500/1000 |
| 3.612.3.2.2.0050.0.0010 | 10 | 0,5 | 13,3 | 90,2 | 257 | 100/500/1000 |
| 3.612.3.2.2.0050.0.0012 | 12 | 0,5 | 13,8 | 99,8 | 284 | 100/500/1000 |
| 3.612.3.2.2.0050.0.0014 | 14 | 0,5 | 14,5 | 112,7 | 316 | 100/500/1000 |
| 3.612.3.2.2.0050.0.0016 | 16 | 0,5 | 15,3 | 123,2 | 348 | 100/500/1000 |
| 3.612.3.2.2.0050.0.0018 | 18 | 0,5 | 16 | 137,4 | 390 | 100/500/1000 |
| 3.612.3.2.2.0050.0.0020 | 20 | 0,5 | 16,9 | 167,6 | 431 | 100/500/1000 |
| 3.612.3.2.2.0050.0.0024 | 24 | 0,5 | 18,7 | 196,2 | 510 | 100/500/1000 |
| 3.612.3.2.2.0050.0.0025 | 25 | 0,5 | 18,7 | 200,6 | 526 | 100/500/1000 |
| 3.612.3.2.2.0050.0.0027 | 27 | 0,5 | 19,1 | 210,4 | 544 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.612.3.2.2.0075.1.0002 | 2 | 0,75 | 8,2 | 36,4 | 105 | 100/500/1000 |
| 3.612.3.2.2.0075.0.0003 | 3 | 0,75 | 8,7 | 48,3 | 127 | 100/500/1000 |
| 3.612.3.2.2.0075.0.0004 | 4 | 0,75 | 9,5 | 57,6 | 149 | 100/500/1000 |
| 3.612.3.2.2.0075.0.0005 | 5 | 0,75 | 10,3 | 59,8 | 171 | 100/500/1000 |
| 3.612.3.2.2.0075.0.0006 | 6 | 0,75 | 11,2 | 71,9 | 202 | 100/500/1000 |
| 3.612.3.2.2.0075.0.0007 | 7 | 0,75 | 11,2 | 78,5 | 206 | 100/500/1000 |
| 3.612.3.2.2.0075.0.0008 | 8 | 0,75 | 12,1 | 87,8 | 241 | 100/500/1000 |
| 3.612.3.2.2.0075.0.0009 | 9 | 0,75 | 14,1 | 106,8 | 292 | 100/500/1000 |
| 3.612.3.2.2.0075.0.0010 | 10 | 0,75 | 14,1 | 113,4 | 296 | 100/500/1000 |
| 3.612.3.2.2.0075.0.0012 | 12 | 0,75 | 14,5 | 130,5 | 328 | 100/500/1000 |
| 3.612.3.2.2.0075.0.0014 | 14 | 0,75 | 15,3 | 145,2 | 364 | 100/500/1000 |
| 3.612.3.2.2.0075.0.0016 | 16 | 0,75 | 16,1 | 163,9 | 405 | 100/500/1000 |
| 3.612.3.2.2.0075.0.0018 | 18 | 0,75 | 16,9 | 198,4 | 465 | 100/500/1000 |
| 3.612.3.2.2.0075.0.0020 | 20 | 0,75 | 17,9 | 213,6 | 501 | 100/500/1000 |
| 3.612.3.2.2.0075.0.0024 | 24 | 0,75 | 19,8 | 252,1 | 594 | 100/500/1000 |
| 3.612.3.2.2.0075.0.0025 | 25 | 0,75 | 19,8 | 258,7 | 613 | 100/500/1000 |
| 3.612.3.2.2.0075.0.0027 | 27 | 0,75 | 20,3 | 273 | 641 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.612.3.2.2.0100.1.0002 | 2 | 1 | 8,7 | 45 | 121 | 100/500/1000 |
| 3.612.3.2.2.0100.0.0003 | 3 | 1 | 9,3 | 55,7 | 144 | 100/500/1000 |
| 3.612.3.2.2.0100.0.0004 | 4 | 1 | 10 | 59,6 | 162 | 100/500/1000 |
| 3.612.3.2.2.0100.0.0005 | 5 | 1 | 10,9 | 69,8 | 194 | 100/500/1000 |
| 3.612.3.2.2.0100.0.0006 | 6 | 1 | 12 | 84,3 | 232 | 100/500/1000 |
| 3.612.3.2.2.0100.0.0007 | 7 | 1 | 12 | 92,5 | 238 | 100/500/1000 |
| 3.612.3.2.2.0100.0.0008 | 8 | 1 | 12,9 | 104,2 | 276 | 100/500/1000 |
| 3.612.3.2.2.0100.0.0009 | 9 | 1 | 15 | 126,6 | 333 | 100/500/1000 |
| 3.612.3.2.2.0100.0.0010 | 10 | 1 | 15 | 134,8 | 339 | 100/500/1000 |
| 3.612.3.2.2.0100.0.0012 | 12 | 1 | 15,5 | 152,3 | 373 | 100/500/1000 |
| 3.612.3.2.2.0100.0.0014 | 14 | 1 | 16,3 | 194 | 437 | 100/500/1000 |
| 3.612.3.2.2.0100.0.0016 | 16 | 1 | 17,1 | 212 | 476 | 100/500/1000 |
| 3.612.3.2.2.0100.0.0018 | 18 | 1 | 18,2 | 237,6 | 544 | 100/500/1000 |
| 3.612.3.2.2.0100.0.0020 | 20 | 1 | 19,1 | 256,5 | 577 | 100/500/1000 |
| 3.612.3.2.2.0100.0.0024 | 24 | 1 | 21,1 | 295,3 | 677 | 100/500/1000 |
| 3.612.3.2.2.0100.0.0025 | 25 | 1 | 21,1 | 303,5 | 700 | 100/500/1000 |
| 3.612.3.2.2.0100.0.0027 | 27 | 1 | 21,5 | 331,2 | 736 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.612.3.2.2.0150.1.0002 | 2 | 1,5 | 9,2 | 56,6 | 140 | 100/500/1000 |
| 3.612.3.2.2.0150.0.0003 | 3 | 1,5 | 9,8 | 70,2 | 166 | 100/500/1000 |
| 3.612.3.2.2.0150.0.0004 | 4 | 1,5 | 10,6 | 79,7 | 190 | 100/500/1000 |
| 3.612.3.2.2.0150.0.0005 | 5 | 1,5 | 11,6 | 98,7 | 233 | 100/500/1000 |
| 3.612.3.2.2.0150.0.0006 | 6 | 1,5 | 12,7 | 114,9 | 274 | 100/500/1000 |
| 3.612.3.2.2.0150.0.0007 | 7 | 1,5 | 12,7 | 127,8 | 284 | 100/500/1000 |
| 3.612.3.2.2.0150.0.0008 | 8 | 1,5 | 13,6 | 149,5 | 331 | 100/500/1000 |
| 3.612.3.2.2.0150.0.0009 | 9 | 1,5 | 15,8 | 169,8 | 388 | 100/500/1000 |
| 3.612.3.2.2.0150.0.0010 | 10 | 1,5 | 15,8 | 182,7 | 397 | 100/500/1000 |
| 3.612.3.2.2.0150.0.0012 | 12 | 1,5 | 16,5 | 233,1 | 468 | 100/500/1000 |
| 3.612.3.2.2.0150.0.0014 | 14 | 1,5 | 17,4 | 260,6 | 525 | 100/500/1000 |
| 3.612.3.2.2.0150.0.0016 | 16 | 1,5 | 18,3 | 295,2 | 585 | 100/500/1000 |
| 3.612.3.2.2.0150.0.0018 | 18 | 1,5 | 19,2 | 323,3 | 646 | 100/500/1000 |
| 3.612.3.2.2.0150.0.0020 | 20 | 1,5 | 20,4 | 352,3 | 703 | 100/500/1000 |
| 3.612.3.2.2.0150.0.0024 | 24 | 1,5 | 22,6 | 420,7 | 836 | 100/500/1000 |
| 3.612.3.2.2.0150.0.0025 | 25 | 1,5 | 22,6 | 433,6 | 865 | 100/500/1000 |
| 3.612.3.2.2.0150.0.0027 | 27 | 1,5 | 23,1 | 461 | 901 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.612.3.2.2.0250.1.0002 | 2 | 2,5 | 10,9 | 71,4 | 186 | 100/500/1000 |
| 3.612.3.2.2.0250.0.0003 | 3 | 2,5 | 11,6 | 98,7 | 230 | 100/500/1000 |
| 3.612.3.2.2.0250.0.0004 | 4 | 2,5 | 12,7 | 123,5 | 279 | 100/500/1000 |
| 3.612.3.2.2.0250.0.0005 | 5 | 2,5 | 13,8 | 154,2 | 340 | 100/500/1000 |
| 3.612.3.2.2.0250.0.0006 | 6 | 2,5 | 15,1 | 181 | 402 | 100/500/1000 |
| 3.612.3.2.2.0250.0.0007 | 7 | 2,5 | 15,1 | 202,4 | 418 | 100/500/1000 |
| 3.612.3.2.2.0250.0.0008 | 8 | 2,5 | 16,4 | 250 | 504 | 100/500/1000 |
| 3.612.3.2.2.0250.0.0009 | 9 | 2,5 | 19,1 | 284,6 | 588 | 100/500/1000 |
| 3.612.3.2.2.0250.0.0010 | 10 | 2,5 | 19,1 | 306 | 604 | 100/500/1000 |
| 3.612.3.2.2.0250.0.0012 | 12 | 2,5 | 19,9 | 351,1 | 684 | 100/500/1000 |
| 3.612.3.2.2.0250.0.0014 | 14 | 2,5 | 20,9 | 396,5 | 764 | 100/500/1000 |
| 3.612.3.2.2.0250.0.0016 | 16 | 2,5 | 22,1 | 453,5 | 863 | 100/500/1000 |
| 3.612.3.2.2.0250.0.0018 | 18 | 2,5 | 23,3 | 500,4 | 963 | 100/500/1000 |
| 3.612.3.2.2.0250.0.0020 | 20 | 2,5 | 24,8 | 548,5 | 1048 | 100/500/1000 |
| 3.612.3.2.2.0250.0.0024 | 24 | 2,5 | 27,4 | 644,4 | 1235 | 100/500/1000 |
| 3.612.3.2.2.0250.0.0025 | 25 | 2,5 | 27,4 | 665,8 | 1281 | 100/500/1000 |
| 3.612.3.2.2.0250.0.0027 | 27 | 2,5 | 28 | 710,8 | 1337 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.612.3.2.2.0400.1.0002 | 2 | 4 | 12,4 | 104 | 248 | 100/500/1000 |
| 3.612.3.2.2.0400.0.0003 | 3 | 4 | 13,2 | 148,9 | 314 | 100/500/1000 |
| 3.612.3.2.2.0400.0.0004 | 4 | 4 | 14,5 | 188,3 | 383 | 100/500/1000 |
| 3.612.3.2.2.0400.0.0005 | 5 | 4 | 15,8 | 225,4 | 459 | 100/500/1000 |
| 3.612.3.2.2.0400.0.0006 | 6 | 4 | 17,4 | 286,4 | 568 | 100/500/1000 |
| 3.612.3.2.2.0400.0.0007 | 7 | 4 | 17,4 | 320,7 | 593 | 100/500/1000 |
| 3.612.3.2.2.0400.0.0008 | 8 | 4 | 18,9 | 365,2 | 690 | 100/500/1000 |
| 3.612.3.2.2.0400.0.0009 | 9 | 4 | 22,3 | 419,6 | 822 | 100/500/1000 |
| 3.612.3.2.2.0400.0.0010 | 10 | 4 | 22,3 | 453,9 | 846 | 100/500/1000 |
| 3.612.3.2.2.0400.0.0012 | 12 | 4 | 23 | 525 | 950 | 100/500/1000 |
| 3.612.3.2.2.0400.0.0014 | 14 | 4 | 24,3 | 598,4 | 1073 | 100/500/1000 |
| 3.612.3.2.2.0400.0.0016 | 16 | 4 | 25,6 | 671,7 | 1193 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.612.3.2.2.0600.1.0002 | 2 | 6 | 14,3 | 153,7 | 340 | 100/500/1000 |
| 3.612.3.2.2.0600.0.0003 | 3 | 6 | 15,2 | 207,1 | 422 | 100/500/1000 |
| 3.612.3.2.2.0600.0.0004 | 4 | 6 | 16,7 | 284,9 | 532 | 100/500/1000 |
| 3.612.3.2.2.0600.0.0005 | 5 | 6 | 18,4 | 346,9 | 654 | 100/500/1000 |
| 3.612.3.2.2.0600.0.0006 | 6 | 6 | 20,2 | 403,2 | 774 | 100/500/1000 |
| 3.612.3.2.2.0600.0.0007 | 7 | 6 | 20,2 | 454,6 | 812 | 100/500/1000 |
| 3.612.3.2.2.0600.0.0008 | 8 | 6 | 22 | 521,6 | 954 | 100/500/1000 |
| 3.612.3.2.2.0600.0.0009 | 9 | 6 | 25,8 | 587 | 1105 | 100/500/1000 |
| 3.612.3.2.2.0600.0.0010 | 10 | 6 | 25,8 | 638,4 | 1143 | 100/500/1000 |
| 3.612.3.2.2.0600.0.0012 | 12 | 6 | 26,9 | 745,3 | 1313 | 100/500/1000 |
| 3.612.3.2.2.0600.0.0014 | 14 | 6 | 28,2 | 853,1 | 1472 | 100/500/1000 |
| 3.612.3.2.2.0600.0.0016 | 16 | 6 | 29,7 | 961,9 | 1642 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.612.3.2.2.1000.1.0002 | 2 | 10 | 17 | 257,9 | 505 | 100/500/1000 |
| 3.612.3.2.2.1000.0.0003 | 3 | 10 | 18,3 | 356,4 | 650 | 100/500/1000 |
| 3.612.3.2.2.1000.0.0004 | 4 | 10 | 20,1 | 450,4 | 794 | 100/500/1000 |
| 3.612.3.2.2.1000.0.0005 | 5 | 10 | 22,2 | 555,8 | 982 | 100/500/1000 |
| 3.612.3.2.2.1000.0.0006 | 6 | 10 | 24,4 | 652,6 | 1172 | 100/500/1000 |
| 3.612.3.2.2.1000.0.0007 | 7 | 10 | 24,4 | 741,7 | 1238 | 100/500/1000 |
| 3.612.3.2.2.1000.0.0008 | 8 | 10 | 26,7 | 839 | 1450 | 100/500/1000 |
| 3.612.3.2.2.1000.0.0009 | 9 | 10 | 31,3 | 962,9 | 1687 | 100/500/1000 |
| 3.612.3.2.2.1000.0.0010 | 10 | 10 | 31,3 | 1051,9 | 1753 | 100/500/1000 |
| Part Number | Conductor Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.612.3.2.2.1600.1.0002 | 2 | 16 | 19,9 | 374,4 | 703 | 100/500/1000 |
| 3.612.3.2.2.1600.0.0003 | 3 | 16 | 21,2 | 518,1 | 895 | 100/500/1000 |
| 3.612.3.2.2.1600.0.0004 | 4 | 16 | 23,4 | 675,8 | 1120 | 100/500/1000 |
| 3.612.3.2.2.1600.0.0005 | 5 | 16 | 25,8 | 825,1 | 1378 | 100/500/1000 |
| 3.612.3.2.2.1600.0.0006 | 6 | 16 | 28,2 | 946,4 | 1594 | 100/500/1000 |
| 3.612.3.2.2.1600.0.0007 | 7 | 16 | 28,3 | 1115,1 | 1744 | 100/500/1000 |
| 3.612.3.2.2.1600.0.0008 | 8 | 16 | 30,8 | 1264,6 | 2017 | 100/500/1000 |
| 3.612.3.2.2.1600.0.0009 | 9 | 16 | 36,2 | 1447,1 | 2329 | 100/500/1000 |
| 3.612.3.2.2.1600.0.0010 | 10 | 16 | 36,2 | 1587,3 | 2452 | 100/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 7.5xD mm | -30°C~+70°C |
